Documentation for AIXM 5.1.1
Definition Type: Group
Name: TaxiHoldingPositionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

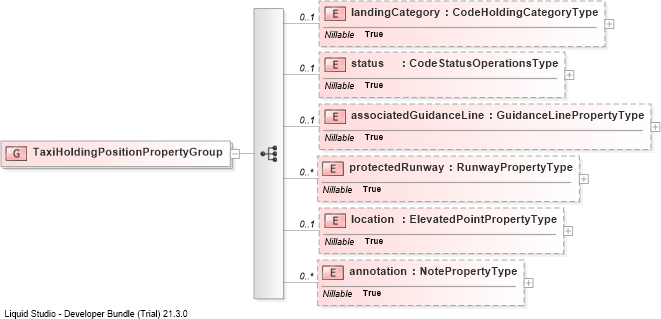

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into protectedRunwayDrilldown into associatedGuidanceLineDrilldown into statusDrilldown into landingCategoryXSD Diagram of TaxiHoldingPositionPropertyGroup
Collapse XSD Schema Code:
<group name="TaxiHoldingPositionPropertyGroup">
    <sequence>
        <element name="landingCategory" type="aixm:CodeHoldingCategoryType" nillable="true" minOccurs="0" />
        <element name="status" type="aixm:CodeStatusOperationsType" nillable="true" minOccurs="0" />
        <element name="associatedGuidanceLine" type="aixm:GuidanceLinePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="protectedRunway" type="aixm:RunwayPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
landingCategory aixm:landingCategory 0 (1)
status aixm:status 0 (1)
associatedGuidanceLine aixm:associatedGuidanceLine 0 1
protectedRunway aixm:protectedRunway 0 unbounded
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
