Definition Type:	Group
Name:	TaxiwayElementPropertyGroup
Namespace:	http://www.aixm.aero/schema/5.1.1
Containing Schema:	AIXM_Features.xsd

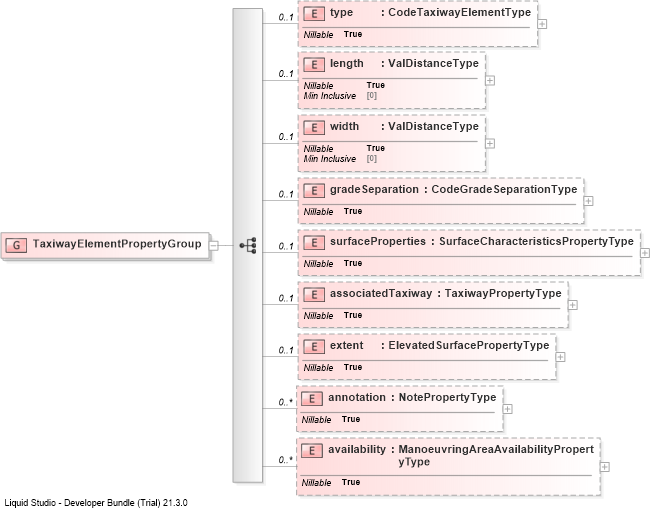

XSD Schema Diagram:

XSD Diagram of TaxiwayElementPropertyGroup

XSD Schema Code:

<group name="TaxiwayElementPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeTaxiwayElementType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="gradeSeparation" type="aixm:CodeGradeSeparationType" nillable="true" minOccurs="0" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="associatedTaxiway" type="aixm:TaxiwayPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ManoeuvringAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>

Child Elements:

Name	Type	Min Occurs	Max Occurs
type	aixm:type	0	(1)
length	aixm:length	0	(1)
width	aixm:width	0	(1)
gradeSeparation	aixm:gradeSeparation	0	(1)
surfaceProperties	aixm:surfaceProperties	0	1
associatedTaxiway	aixm:associatedTaxiway	0	1
extent	aixm:extent	0	1
annotation	aixm:annotation	0	unbounded
availability	aixm:availability	0	unbounded
