Documentation for AIXM 5.1.1
Definition Type: Group
Name: TaxiwayPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

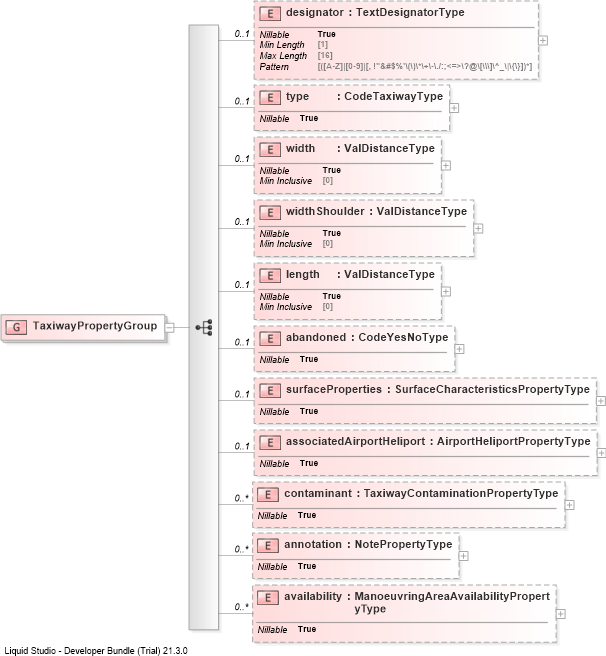

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into contaminantDrilldown into associatedAirportHeliportDrilldown into surfacePropertiesDrilldown into abandonedDrilldown into lengthDrilldown into widthShoulderDrilldown into widthDrilldown into typeDrilldown into designatorXSD Diagram of TaxiwayPropertyGroup
Collapse XSD Schema Code:
<group name="TaxiwayPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeTaxiwayType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="widthShoulder" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="abandoned" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="associatedAirportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="contaminant" type="aixm:TaxiwayContaminationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ManoeuvringAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
width aixm:width 0 (1)
widthShoulder aixm:widthShoulder 0 (1)
length aixm:length 0 (1)
abandoned aixm:abandoned 0 (1)
surfaceProperties aixm:surfaceProperties 0 1
associatedAirportHeliport aixm:associatedAirportHeliport 0 1
contaminant aixm:contaminant 0 unbounded
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
