Definition Type: Group
Name: TerminalArrivalAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

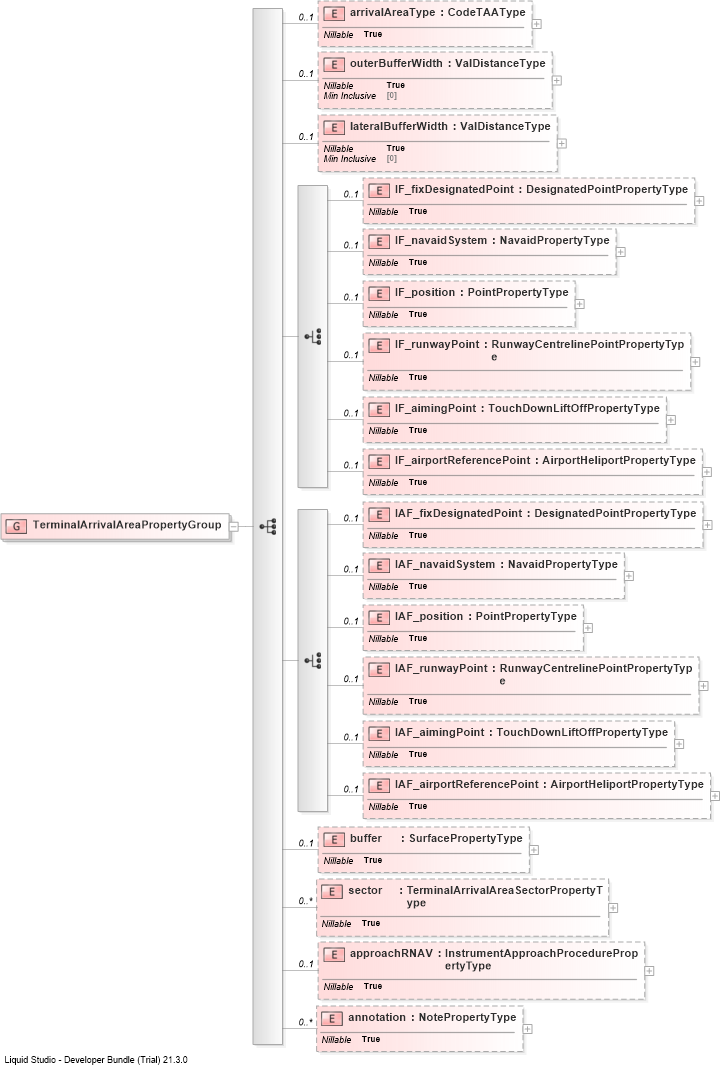

Drilldown into annotationDrilldown into approachRNAVDrilldown into sectorDrilldown into bufferDrilldown into IAF_airportReferencePointDrilldown into IAF_aimingPointDrilldown into IAF_runwayPointDrilldown into IAF_positionDrilldown into IAF_navaidSystemDrilldown into IAF_fixDesignatedPointDrilldown into IF_airportReferencePointDrilldown into IF_aimingPointDrilldown into IF_runwayPointDrilldown into IF_positionDrilldown into IF_navaidSystemDrilldown into IF_fixDesignatedPointDrilldown into lateralBufferWidthDrilldown into outerBufferWidthDrilldown into arrivalAreaTypeXSD Diagram of TerminalArrivalAreaPropertyGroup
Collapse XSD Schema Code:
<group name="TerminalArrivalAreaPropertyGroup">
    <sequence>
        <element name="arrivalAreaType" type="aixm:CodeTAAType" nillable="true" minOccurs="0" />
        <element name="outerBufferWidth" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lateralBufferWidth" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <choice>
            <element name="IF_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="IF_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="IF_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="IF_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="IF_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="IF_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <choice>
            <element name="IAF_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="IAF_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="IAF_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="IAF_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="IAF_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="IAF_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="buffer" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="sector" type="aixm:TerminalArrivalAreaSectorPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="approachRNAV" type="aixm:InstrumentApproachProcedurePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
arrivalAreaType aixm:arrivalAreaType 0 (1)
outerBufferWidth aixm:outerBufferWidth 0 (1)
lateralBufferWidth aixm:lateralBufferWidth 0 (1)
IF_fixDesignatedPoint aixm:IF_fixDesignatedPoint 0 (1)
IF_navaidSystem aixm:IF_navaidSystem 0 (1)
IF_position aixm:IF_position 0 (1)
IF_runwayPoint aixm:IF_runwayPoint 0 (1)
IF_aimingPoint aixm:IF_aimingPoint 0 (1)
IF_airportReferencePoint aixm:IF_airportReferencePoint 0 (1)
IAF_fixDesignatedPoint aixm:IAF_fixDesignatedPoint 0 (1)
IAF_navaidSystem aixm:IAF_navaidSystem 0 (1)
IAF_position aixm:IAF_position 0 (1)
IAF_runwayPoint aixm:IAF_runwayPoint 0 (1)
IAF_aimingPoint aixm:IAF_aimingPoint 0 (1)
IAF_airportReferencePoint aixm:IAF_airportReferencePoint 0 (1)
buffer aixm:buffer 0 1
sector aixm:sector 0 unbounded
approachRNAV aixm:approachRNAV 0 1
annotation aixm:annotation 0 unbounded
