Documentation for AIXM 5.1.1
Definition Type: Group
Name: TerminalArrivalAreaSectorPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

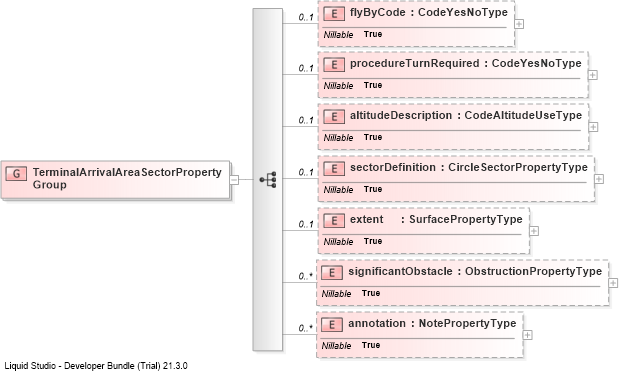

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into significantObstacleDrilldown into extentDrilldown into sectorDefinitionDrilldown into altitudeDescriptionDrilldown into procedureTurnRequiredDrilldown into flyByCodeXSD Diagram of TerminalArrivalAreaSectorPropertyGroup
Collapse XSD Schema Code:
<group name="TerminalArrivalAreaSectorPropertyGroup">
    <sequence>
        <element name="flyByCode" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="procedureTurnRequired" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="altitudeDescription" type="aixm:CodeAltitudeUseType" nillable="true" minOccurs="0" />
        <element name="sectorDefinition" type="aixm:CircleSectorPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="significantObstacle" type="aixm:ObstructionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flyByCode aixm:flyByCode 0 (1)
procedureTurnRequired aixm:procedureTurnRequired 0 (1)
altitudeDescription aixm:altitudeDescription 0 (1)
sectorDefinition aixm:sectorDefinition 0 1
extent aixm:extent 0 1
significantObstacle aixm:significantObstacle 0 unbounded
annotation aixm:annotation 0 unbounded
