Documentation for AIXM 5.1.1
Definition Type: Element
Name: TimeCoordinateSystem
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TimeCoordinateSystemType
Containing Schema: temporalReferenceSystems.xsd
Abstract
Documentation:
A temporal coordinate system shall be based on a continuous interval scale defined in terms of a single time interval.
The differences to ISO 19108 TM_CoordinateSystem are:
-	the origin is specified either using the property gml:originPosition whose value is a direct time position, or using the property gml:origin whose model is gml:TimeInstantPropertyType; this permits more flexibility in representation and also supports referring to a value fixed elsewhere;
-	the interval uses gml:TimeIntervalLengthType.

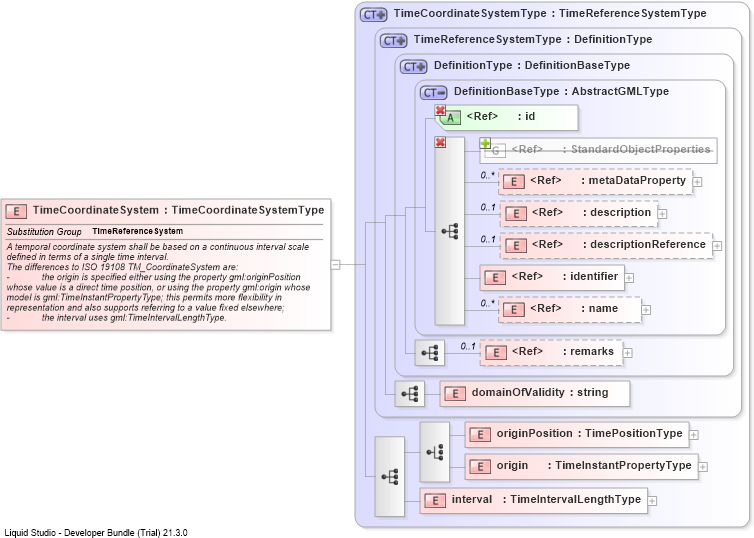

Collapse XSD Schema Diagram:
Drilldown into intervalDrilldown into originDrilldown into originPositionDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into TimeReferenceSystemTypeDrilldown into TimeCoordinateSystemTypeXSD Diagram of TimeCoordinateSystem
Collapse XSD Schema Code:
<element name="TimeCoordinateSystem" type="gml:TimeCoordinateSystemType" substitutionGroup="gml:TimeReferenceSystem">
    <annotation>
        <documentation>A temporal coordinate system shall be based on a continuous interval scale defined in terms of a single time interval.
The differences to ISO 19108 TM_CoordinateSystem are:
-	the origin is specified either using the property gml:originPosition whose value is a direct time position, or using the property gml:origin whose model is gml:TimeInstantPropertyType; this permits more flexibility in representation and also supports referring to a value fixed elsewhere;
-	the interval uses gml:TimeIntervalLengthType.
</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity (1) (1)
originPosition gml:originPosition (1) (1)
origin gml:origin (1) (1)
interval gml:interval (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:TimeReferenceSystem
