Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: TimePrimitivePropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: temporal.xsd
Abstract
Documentation:
gml:TimePrimitivePropertyType provides a standard content model for associations between an arbitrary member of the substitution group whose head is gml:AbstractTimePrimitive and another object.

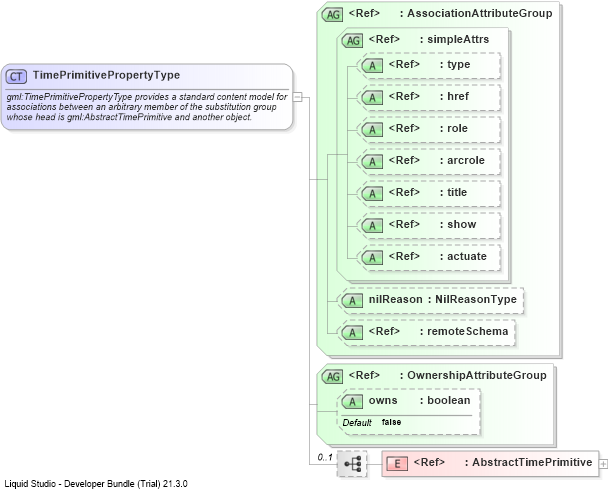

Collapse XSD Schema Diagram:
Drilldown into AbstractTimePrimitiveDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of TimePrimitivePropertyType
Collapse XSD Schema Code:
<complexType name="TimePrimitivePropertyType">
    <annotation>
        <documentation>gml:TimePrimitivePropertyType provides a standard content model for associations between an arbitrary member of the substitution group whose head is gml:AbstractTimePrimitive and another object.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractTimePrimitive" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractTimePrimitive gml:AbstractTimePrimitive (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
Collapse References:
aixm:featureLifetime, gml:RelatedTimeType, gml:validTime
