Documentation for AIXM 5.1.1
Definition Type: Group
Name: TimesheetPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

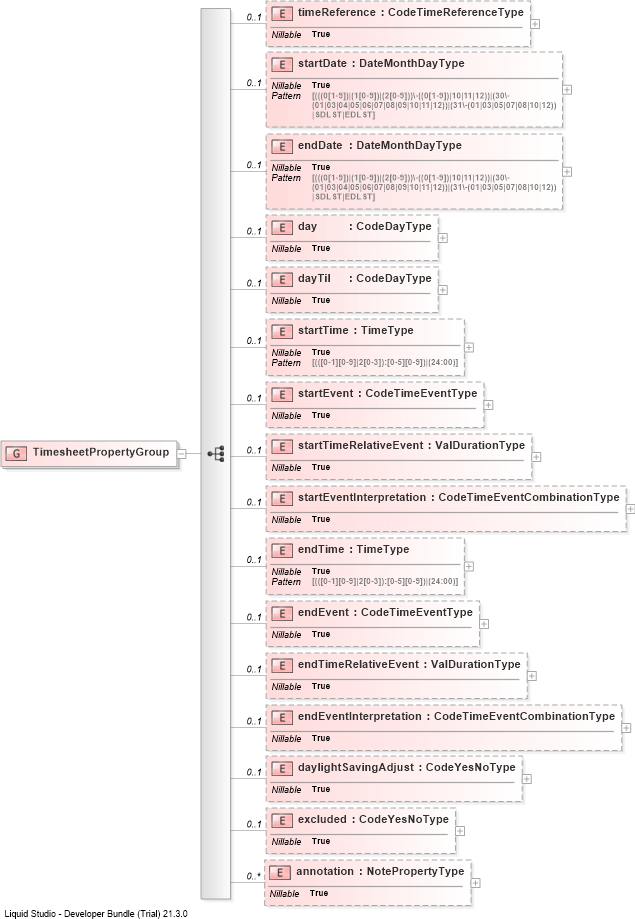

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into excludedDrilldown into daylightSavingAdjustDrilldown into endEventInterpretationDrilldown into endTimeRelativeEventDrilldown into endEventDrilldown into endTimeDrilldown into startEventInterpretationDrilldown into startTimeRelativeEventDrilldown into startEventDrilldown into startTimeDrilldown into dayTilDrilldown into dayDrilldown into endDateDrilldown into startDateDrilldown into timeReferenceXSD Diagram of TimesheetPropertyGroup
Collapse XSD Schema Code:
<group name="TimesheetPropertyGroup">
    <sequence>
        <element name="timeReference" type="aixm:CodeTimeReferenceType" nillable="true" minOccurs="0" />
        <element name="startDate" type="aixm:DateMonthDayType" nillable="true" minOccurs="0" />
        <element name="endDate" type="aixm:DateMonthDayType" nillable="true" minOccurs="0" />
        <element name="day" type="aixm:CodeDayType" nillable="true" minOccurs="0" />
        <element name="dayTil" type="aixm:CodeDayType" nillable="true" minOccurs="0" />
        <element name="startTime" type="aixm:TimeType" nillable="true" minOccurs="0" />
        <element name="startEvent" type="aixm:CodeTimeEventType" nillable="true" minOccurs="0" />
        <element name="startTimeRelativeEvent" type="aixm:ValDurationType" nillable="true" minOccurs="0" />
        <element name="startEventInterpretation" type="aixm:CodeTimeEventCombinationType" nillable="true" minOccurs="0" />
        <element name="endTime" type="aixm:TimeType" nillable="true" minOccurs="0" />
        <element name="endEvent" type="aixm:CodeTimeEventType" nillable="true" minOccurs="0" />
        <element name="endTimeRelativeEvent" type="aixm:ValDurationType" nillable="true" minOccurs="0" />
        <element name="endEventInterpretation" type="aixm:CodeTimeEventCombinationType" nillable="true" minOccurs="0" />
        <element name="daylightSavingAdjust" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="excluded" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
timeReference aixm:timeReference 0 (1)
startDate aixm:startDate 0 (1)
endDate aixm:endDate 0 (1)
day aixm:day 0 (1)
dayTil aixm:dayTil 0 (1)
startTime aixm:startTime 0 (1)
startEvent aixm:startEvent 0 (1)
startTimeRelativeEvent aixm:startTimeRelativeEvent 0 (1)
startEventInterpretation aixm:startEventInterpretation 0 (1)
endTime aixm:endTime 0 (1)
endEvent aixm:endEvent 0 (1)
endTimeRelativeEvent aixm:endTimeRelativeEvent 0 (1)
endEventInterpretation aixm:endEventInterpretation 0 (1)
daylightSavingAdjust aixm:daylightSavingAdjust 0 (1)
excluded aixm:excluded 0 (1)
annotation aixm:annotation 0 unbounded
