Documentation for AIXM 5.1.1
Definition Type: Element
Name: TimeTopologyComplex
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TimeTopologyComplexType
Containing Schema: temporalTopology.xsd
Abstract
Documentation:
A temporal topology complex shall be the connected acyclic directed graph composed of temporal topological primitives, i.e. time nodes and time edges. Because a time edge may not exist without two time nodes on its boundaries, static features have time edges from a temporal topology complex as the values of their temporal properties, regardless of explicit declarations.
A temporal topology complex expresses a linear or a non-linear graph. A temporal linear graph, composed of a sequence of time edges, provides a lineage described only by "substitution" of feature instances or feature element values. A time node as the start or the end of the graph connects with at least one time edge. A time node other than the start and the end shall connect to at least two time edges: one of starting from the node, and another ending at the node.
A temporal topological complex is a set of connected temporal topological primitives. The member primtives are indicated, either by reference or by value, using the primitive property.

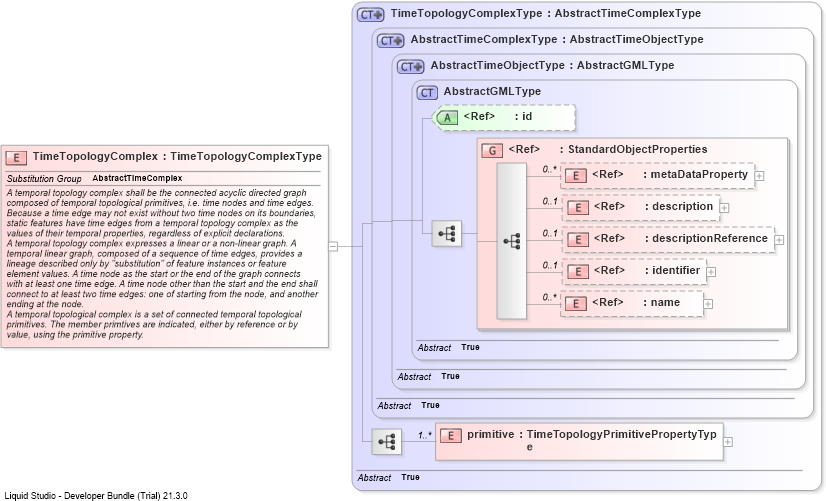

Collapse XSD Schema Diagram:
Drilldown into primitiveDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTimeObjectTypeDrilldown into AbstractTimeComplexTypeDrilldown into TimeTopologyComplexTypeXSD Diagram of TimeTopologyComplex
Collapse XSD Schema Code:
<element name="TimeTopologyComplex" type="gml:TimeTopologyComplexType" substitutionGroup="gml:AbstractTimeComplex">
    <annotation>
        <documentation>A temporal topology complex shall be the connected acyclic directed graph composed of temporal topological primitives, i.e. time nodes and time edges. Because a time edge may not exist without two time nodes on its boundaries, static features have time edges from a temporal topology complex as the values of their temporal properties, regardless of explicit declarations.
A temporal topology complex expresses a linear or a non-linear graph. A temporal linear graph, composed of a sequence of time edges, provides a lineage described only by "substitution" of feature instances or feature element values. A time node as the start or the end of the graph connects with at least one time edge. A time node other than the start and the end shall connect to at least two time edges: one of starting from the node, and another ending at the node.
A temporal topological complex is a set of connected temporal topological primitives. The member primtives are indicated, either by reference or by value, using the primitive property.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
primitive gml:primitive (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimeComplex
