Documentation for AIXM 5.1.1
Definition Type: Group
Name: TouchDownLiftOffLightSystemPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

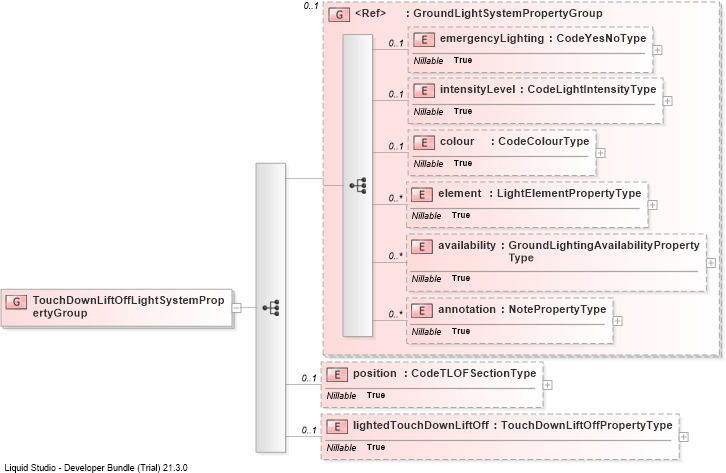

Collapse XSD Schema Diagram:
Drilldown into lightedTouchDownLiftOffDrilldown into positionDrilldown into annotationDrilldown into availabilityDrilldown into elementDrilldown into colourDrilldown into intensityLevelDrilldown into emergencyLightingDrilldown into GroundLightSystemPropertyGroupXSD Diagram of TouchDownLiftOffLightSystemPropertyGroup
Collapse XSD Schema Code:
<group name="TouchDownLiftOffLightSystemPropertyGroup">
    <sequence>
        <group ref="aixm:GroundLightSystemPropertyGroup" minOccurs="0" />
        <element name="position" type="aixm:CodeTLOFSectionType" nillable="true" minOccurs="0" />
        <element name="lightedTouchDownLiftOff" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
emergencyLighting aixm:emergencyLighting 0 (1)
intensityLevel aixm:intensityLevel 0 (1)
colour aixm:colour 0 (1)
element aixm:element 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
position aixm:position 0 (1)
lightedTouchDownLiftOff aixm:lightedTouchDownLiftOff 0 1
<xs:group> aixm:GroundLightSystemPropertyGroup 0 (1)
