Documentation for AIXM 5.1.1
Definition Type: Group
Name: TouchDownLiftOffPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

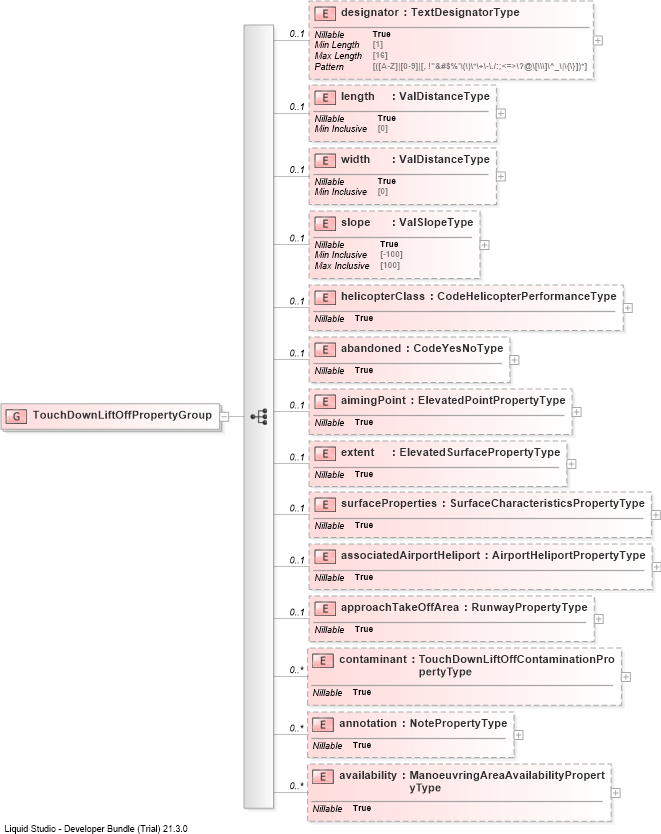

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into contaminantDrilldown into approachTakeOffAreaDrilldown into associatedAirportHeliportDrilldown into surfacePropertiesDrilldown into extentDrilldown into aimingPointDrilldown into abandonedDrilldown into helicopterClassDrilldown into slopeDrilldown into widthDrilldown into lengthDrilldown into designatorXSD Diagram of TouchDownLiftOffPropertyGroup
Collapse XSD Schema Code:
<group name="TouchDownLiftOffPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="slope" type="aixm:ValSlopeType" nillable="true" minOccurs="0" />
        <element name="helicopterClass" type="aixm:CodeHelicopterPerformanceType" nillable="true" minOccurs="0" />
        <element name="abandoned" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="aimingPoint" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="associatedAirportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="approachTakeOffArea" type="aixm:RunwayPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="contaminant" type="aixm:TouchDownLiftOffContaminationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ManoeuvringAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
length aixm:length 0 (1)
width aixm:width 0 (1)
slope aixm:slope 0 (1)
helicopterClass aixm:helicopterClass 0 (1)
abandoned aixm:abandoned 0 (1)
aimingPoint aixm:aimingPoint 0 1
extent aixm:extent 0 1
surfaceProperties aixm:surfaceProperties 0 1
associatedAirportHeliport aixm:associatedAirportHeliport 0 1
approachTakeOffArea aixm:approachTakeOffArea 0 1
contaminant aixm:contaminant 0 unbounded
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
