Definition Type: Element
Name: TriangulatedSurface
Namespace: http://www.opengis.net/gml/3.2
Type: gml:SurfaceType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A triangulated surface is a polyhedral surface that is composed only of triangles. There is no restriction on how the triangulation is derived.
trianglePatches encapsulates the triangles of the triangulated surface.

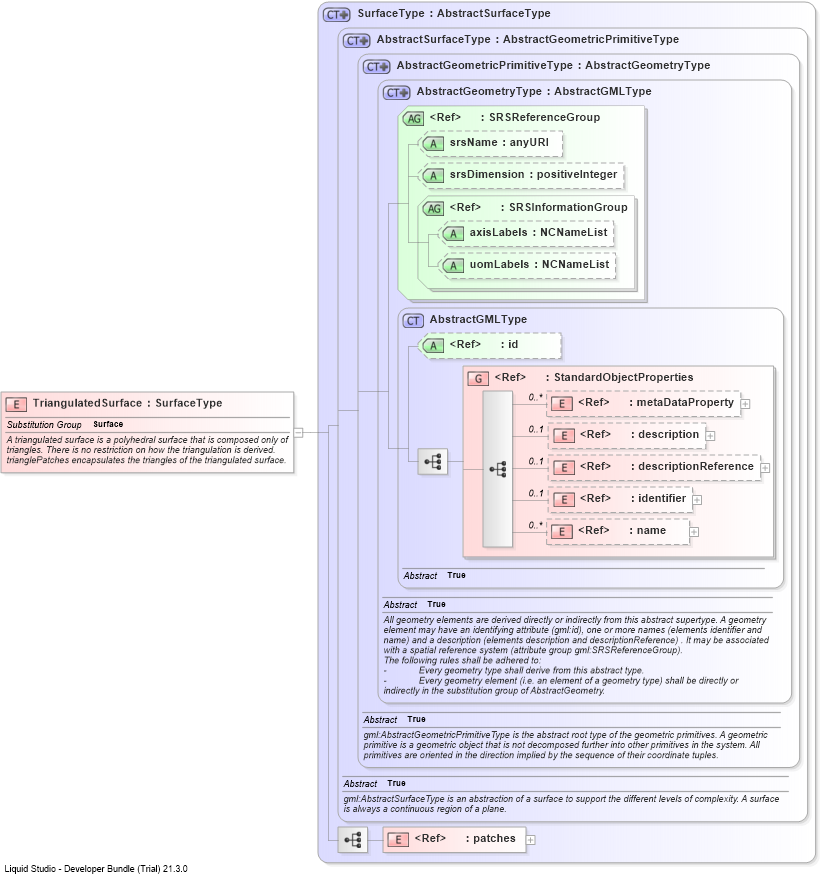

Collapse XSD Schema Diagram:
Drilldown into patchesDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSurfaceTypeDrilldown into SurfaceTypeXSD Diagram of TriangulatedSurface
Collapse XSD Schema Code:
<element name="TriangulatedSurface" type="gml:SurfaceType" substitutionGroup="gml:Surface">
    <annotation>
        <documentation>A triangulated surface is a polyhedral surface that is composed only of triangles. There is no restriction on how the triangulation is derived.
trianglePatches encapsulates the triangles of the triangulated surface.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
patches gml:patches (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Surface
