Documentation for AIXM 5.1.1
Definition Type: Element
Name: tupleList
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CoordinatesType
Containing Schema: coverage.xsd
Abstract
Documentation:
gml:CoordinatesType consists of a list of coordinate tuples, with each coordinate tuple separated by the ts or tuple separator (whitespace), and each coordinate in the tuple by the cs or coordinate separator (comma).
The gml:tupleList encoding is effectively "band-interleaved".

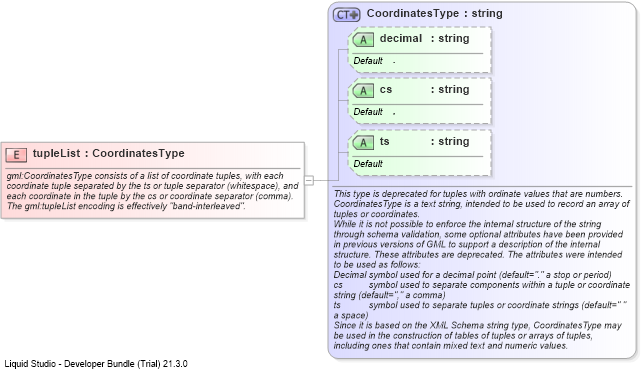

Collapse XSD Schema Diagram:
Drilldown into tsDrilldown into csDrilldown into decimalDrilldown into CoordinatesTypeXSD Diagram of tupleList
Collapse XSD Schema Code:
<element name="tupleList" type="gml:CoordinatesType">
    <annotation>
        <documentation>gml:CoordinatesType consists of a list of coordinate tuples, with each coordinate tuple separated by the ts or tuple separator (whitespace), and each coordinate in the tuple by the cs or coordinate separator (comma).
The gml:tupleList encoding is effectively "band-interleaved".</documentation>
    </annotation>
</element>
Collapse Child Attributes:
Name Type Default Value Use
decimal gml:decimal . (Optional)
cs gml:cs , (Optional)
ts gml:ts (Optional)
Collapse Derivation Tree:
