Documentation for AIXM 5.1.1
Definition Type: Group
Name: UnitPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

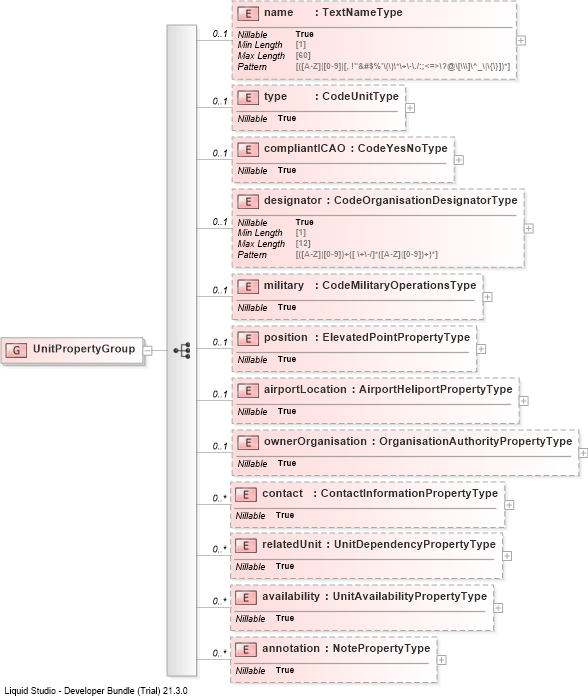

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into relatedUnitDrilldown into contactDrilldown into ownerOrganisationDrilldown into airportLocationDrilldown into positionDrilldown into militaryDrilldown into designatorDrilldown into compliantICAODrilldown into typeDrilldown into nameXSD Diagram of UnitPropertyGroup
Collapse XSD Schema Code:
<group name="UnitPropertyGroup">
    <sequence>
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeUnitType" nillable="true" minOccurs="0" />
        <element name="compliantICAO" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:CodeOrganisationDesignatorType" nillable="true" minOccurs="0" />
        <element name="military" type="aixm:CodeMilitaryOperationsType" nillable="true" minOccurs="0" />
        <element name="position" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="airportLocation" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="ownerOrganisation" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="contact" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="relatedUnit" type="aixm:UnitDependencyPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:UnitAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
type aixm:type 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
designator aixm:designator 0 (1)
military aixm:military 0 (1)
position aixm:position 0 1
airportLocation aixm:airportLocation 0 1
ownerOrganisation aixm:ownerOrganisation 0 1
contact aixm:contact 0 unbounded
relatedUnit aixm:relatedUnit 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
