Documentation for AIXM 5.1.1
Definition Type: Group
Name: UnplannedHoldingPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

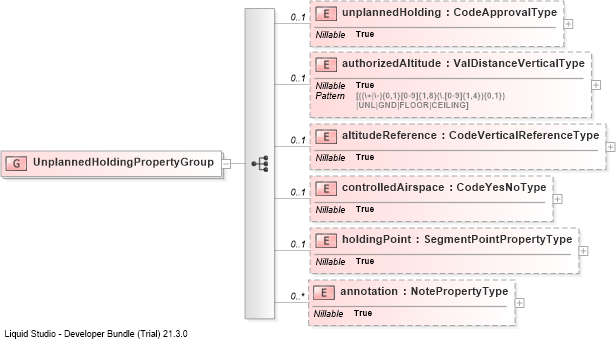

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into holdingPointDrilldown into controlledAirspaceDrilldown into altitudeReferenceDrilldown into authorizedAltitudeDrilldown into unplannedHoldingXSD Diagram of UnplannedHoldingPropertyGroup
Collapse XSD Schema Code:
<group name="UnplannedHoldingPropertyGroup">
    <sequence>
        <element name="unplannedHolding" type="aixm:CodeApprovalType" nillable="true" minOccurs="0" />
        <element name="authorizedAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="altitudeReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="controlledAirspace" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="holdingPoint" type="aixm:SegmentPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unplannedHolding aixm:unplannedHolding 0 (1)
authorizedAltitude aixm:authorizedAltitude 0 (1)
altitudeReference aixm:altitudeReference 0 (1)
controlledAirspace aixm:controlledAirspace 0 (1)
holdingPoint aixm:holdingPoint 0 1
annotation aixm:annotation 0 unbounded
