Documentation for AIXM 5.1.1
Definition Type: Group
Name: UsageConditionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

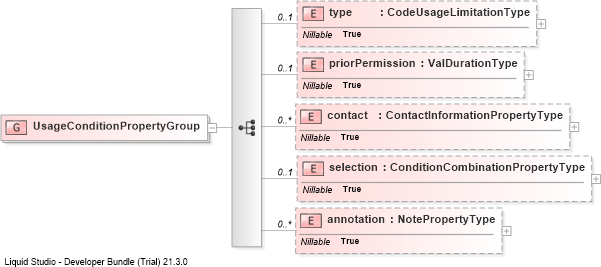

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into selectionDrilldown into contactDrilldown into priorPermissionDrilldown into typeXSD Diagram of UsageConditionPropertyGroup
Collapse XSD Schema Code:
<group name="UsageConditionPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeUsageLimitationType" nillable="true" minOccurs="0" />
        <element name="priorPermission" type="aixm:ValDurationType" nillable="true" minOccurs="0" />
        <element name="contact" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="selection" type="aixm:ConditionCombinationPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
priorPermission aixm:priorPermission 0 (1)
contact aixm:contact 0 unbounded
selection aixm:selection 0 1
annotation aixm:annotation 0 unbounded
