Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: VerticalCRSPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateReferenceSystems.xsd
Abstract
Documentation:
gml:VerticalCRSPropertyType is a property type for association roles to a vertical coordinate reference system, either referencing or containing the definition of that reference system.

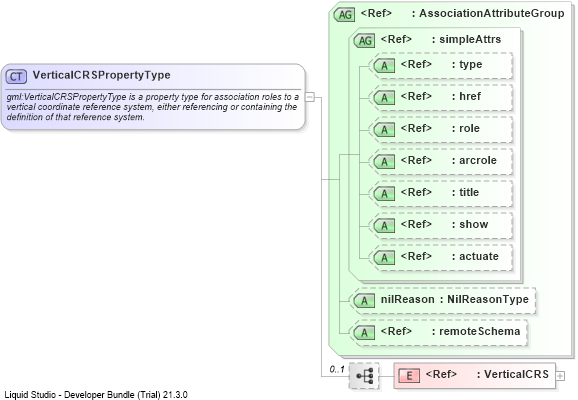

Collapse XSD Schema Diagram:
Drilldown into VerticalCRSDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of VerticalCRSPropertyType
Collapse XSD Schema Code:
<complexType name="VerticalCRSPropertyType">
    <annotation>
        <documentation>gml:VerticalCRSPropertyType is a property type for association roles to a vertical coordinate reference system, either referencing or containing the definition of that reference system.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:VerticalCRS" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VerticalCRS gml:VerticalCRS (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:verticalCRSRef
