Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: VerticalCSPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
gml:VerticalCSPropertyType is a property type for association roles to a vertical coordinate system, either referencing or containing the definition of that coordinate system.

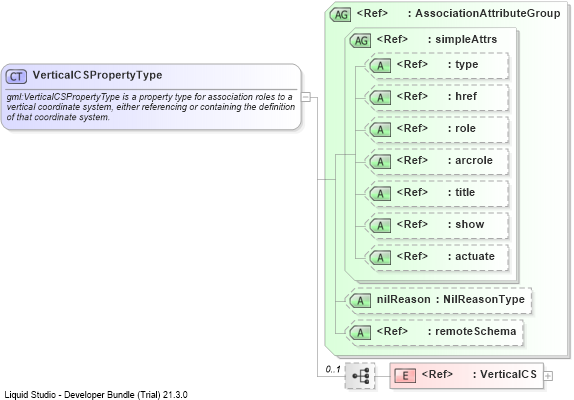

Collapse XSD Schema Diagram:
Drilldown into VerticalCSDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of VerticalCSPropertyType
Collapse XSD Schema Code:
<complexType name="VerticalCSPropertyType">
    <annotation>
        <documentation>gml:VerticalCSPropertyType is a property type for association roles to a vertical coordinate system, either referencing or containing the definition of that coordinate system.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:VerticalCS" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VerticalCS gml:VerticalCS (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:usesVerticalCS, gml:verticalCS, gml:verticalCSRef
