Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: VerticalDatumPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: datums.xsd
Abstract
Documentation:
gml:VerticalDatumPropertyType is property type for association roles to a vertical datum, either referencing or containing the definition of that datum.

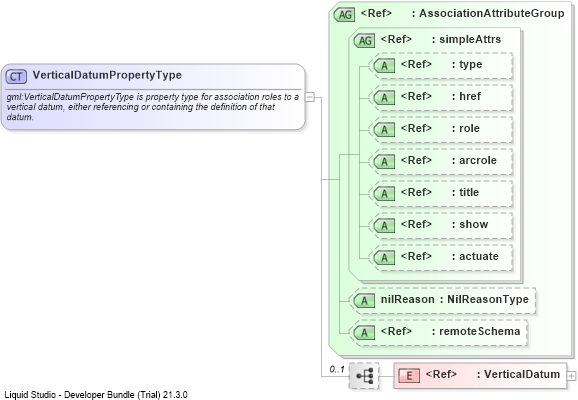

Collapse XSD Schema Diagram:
Drilldown into VerticalDatumDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of VerticalDatumPropertyType
Collapse XSD Schema Code:
<complexType name="VerticalDatumPropertyType">
    <annotation>
        <documentation>gml:VerticalDatumPropertyType is property type for association roles to a vertical datum, either referencing or containing the definition of that datum.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:VerticalDatum" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VerticalDatum gml:VerticalDatum (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:usesVerticalDatum, gml:verticalDatum, gml:verticalDatumRef
