Documentation for AIXM 5.1.1
Definition Type: Element
Name: verticalElement
Namespace: http://www.isotc211.org/2005/gmd
Type: gmd:EX_VerticalExtent_PropertyType
Containing Schema: extent.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

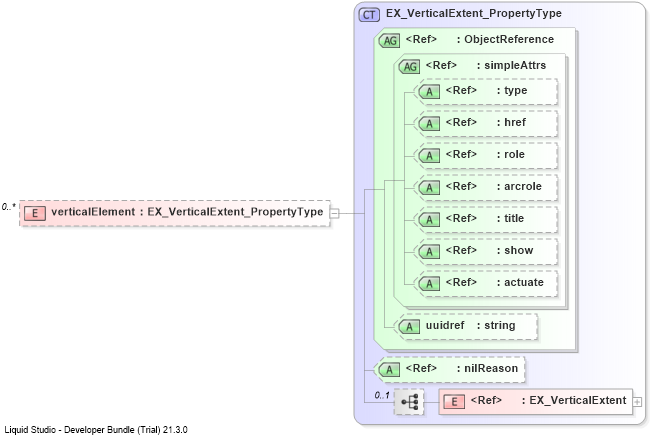

Collapse XSD Schema Diagram:
Drilldown into EX_VerticalExtentDrilldown into nilReasonDrilldown into uuidrefDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into ObjectReferenceDrilldown into EX_VerticalExtent_PropertyTypeXSD Diagram of verticalElement
Collapse XSD Schema Code:
<xs:element name="verticalElement" type="gmd:EX_VerticalExtent_PropertyType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EX_VerticalExtent gmd:EX_VerticalExtent (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
uuidref gco:uuidref (Optional)
nilReason gco:nilReason (Optional)
Collapse Derivation Tree:
