Documentation for AIXM 5.1.1
Definition Type: Element
Name: verticalExtent
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AirspaceLayerPropertyType
Containing Schema: AIXM_Features.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

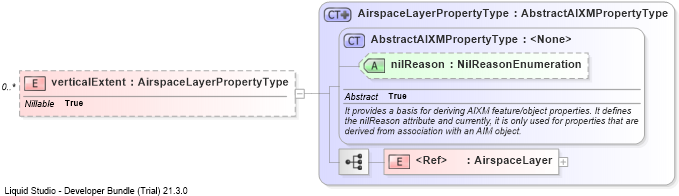

Collapse XSD Schema Diagram:
Drilldown into AirspaceLayerDrilldown into nilReasonDrilldown into AbstractAIXMPropertyTypeDrilldown into AirspaceLayerPropertyTypeXSD Diagram of verticalExtent
Collapse XSD Schema Code:
<element name="verticalExtent" type="aixm:AirspaceLayerPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AirspaceLayer aixm:AirspaceLayer (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
nilReason aixm:nilReason (Optional)
Collapse Derivation Tree:
