Documentation for AIXM 5.1.1
Definition Type: Group
Name: VerticalStructurePartPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

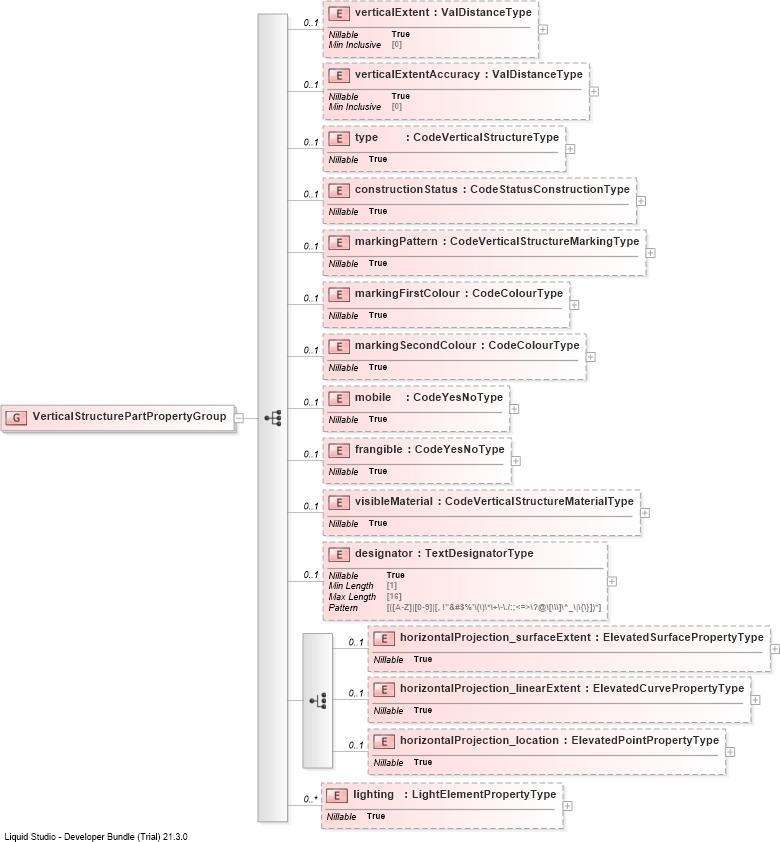

Drilldown into lightingDrilldown into horizontalProjection_locationDrilldown into horizontalProjection_linearExtentDrilldown into horizontalProjection_surfaceExtentDrilldown into designatorDrilldown into visibleMaterialDrilldown into frangibleDrilldown into mobileDrilldown into markingSecondColourDrilldown into markingFirstColourDrilldown into markingPatternDrilldown into constructionStatusDrilldown into typeDrilldown into verticalExtentAccuracyDrilldown into verticalExtentXSD Diagram of VerticalStructurePartPropertyGroup
Collapse XSD Schema Code:
<group name="VerticalStructurePartPropertyGroup">
    <sequence>
        <element name="verticalExtent" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="verticalExtentAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeVerticalStructureType" nillable="true" minOccurs="0" />
        <element name="constructionStatus" type="aixm:CodeStatusConstructionType" nillable="true" minOccurs="0" />
        <element name="markingPattern" type="aixm:CodeVerticalStructureMarkingType" nillable="true" minOccurs="0" />
        <element name="markingFirstColour" type="aixm:CodeColourType" nillable="true" minOccurs="0" />
        <element name="markingSecondColour" type="aixm:CodeColourType" nillable="true" minOccurs="0" />
        <element name="mobile" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="frangible" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="visibleMaterial" type="aixm:CodeVerticalStructureMaterialType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <choice>
            <element name="horizontalProjection_surfaceExtent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" />
            <element name="horizontalProjection_linearExtent" type="aixm:ElevatedCurvePropertyType" nillable="true" minOccurs="0" />
            <element name="horizontalProjection_location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="lighting" type="aixm:LightElementPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
verticalExtent aixm:verticalExtent 0 (1)
verticalExtentAccuracy aixm:verticalExtentAccuracy 0 (1)
type aixm:type 0 (1)
constructionStatus aixm:constructionStatus 0 (1)
markingPattern aixm:markingPattern 0 (1)
markingFirstColour aixm:markingFirstColour 0 (1)
markingSecondColour aixm:markingSecondColour 0 (1)
mobile aixm:mobile 0 (1)
frangible aixm:frangible 0 (1)
visibleMaterial aixm:visibleMaterial 0 (1)
designator aixm:designator 0 (1)
horizontalProjection_surfaceExtent aixm:horizontalProjection_surfaceExtent 0 (1)
horizontalProjection_linearExtent aixm:horizontalProjection_linearExtent 0 (1)
horizontalProjection_location aixm:horizontalProjection_location 0 (1)
lighting aixm:lighting 0 unbounded
