Documentation for AIXM 5.1.1
Definition Type: Group
Name: VerticalStructurePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

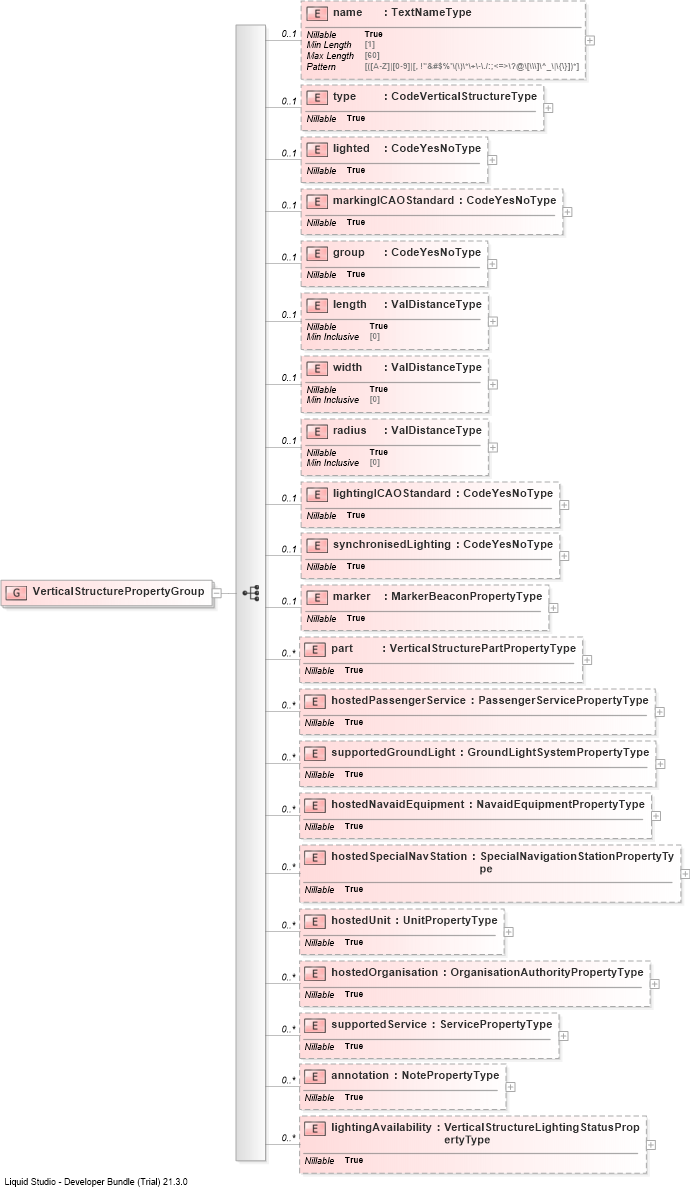

Collapse XSD Schema Diagram:
Drilldown into lightingAvailabilityDrilldown into annotationDrilldown into supportedServiceDrilldown into hostedOrganisationDrilldown into hostedUnitDrilldown into hostedSpecialNavStationDrilldown into hostedNavaidEquipmentDrilldown into supportedGroundLightDrilldown into hostedPassengerServiceDrilldown into partDrilldown into markerDrilldown into synchronisedLightingDrilldown into lightingICAOStandardDrilldown into radiusDrilldown into widthDrilldown into lengthDrilldown into groupDrilldown into markingICAOStandardDrilldown into lightedDrilldown into typeDrilldown into nameXSD Diagram of VerticalStructurePropertyGroup
Collapse XSD Schema Code:
<group name="VerticalStructurePropertyGroup">
    <sequence>
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeVerticalStructureType" nillable="true" minOccurs="0" />
        <element name="lighted" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="markingICAOStandard" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="group" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="radius" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lightingICAOStandard" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="synchronisedLighting" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="marker" type="aixm:MarkerBeaconPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="part" type="aixm:VerticalStructurePartPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="hostedPassengerService" type="aixm:PassengerServicePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="supportedGroundLight" type="aixm:GroundLightSystemPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="hostedNavaidEquipment" type="aixm:NavaidEquipmentPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="hostedSpecialNavStation" type="aixm:SpecialNavigationStationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="hostedUnit" type="aixm:UnitPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="hostedOrganisation" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="supportedService" type="aixm:ServicePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="lightingAvailability" type="aixm:VerticalStructureLightingStatusPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
type aixm:type 0 (1)
lighted aixm:lighted 0 (1)
markingICAOStandard aixm:markingICAOStandard 0 (1)
group aixm:group 0 (1)
length aixm:length 0 (1)
width aixm:width 0 (1)
radius aixm:radius 0 (1)
lightingICAOStandard aixm:lightingICAOStandard 0 (1)
synchronisedLighting aixm:synchronisedLighting 0 (1)
marker aixm:marker 0 1
part aixm:part 0 unbounded
hostedPassengerService aixm:hostedPassengerService 0 unbounded
supportedGroundLight aixm:supportedGroundLight 0 unbounded
hostedNavaidEquipment aixm:hostedNavaidEquipment 0 unbounded
hostedSpecialNavStation aixm:hostedSpecialNavStation 0 unbounded
hostedUnit aixm:hostedUnit 0 unbounded
hostedOrganisation aixm:hostedOrganisation 0 unbounded
supportedService aixm:supportedService 0 unbounded
annotation aixm:annotation 0 unbounded
lightingAvailability aixm:lightingAvailability 0 unbounded
