Documentation for AIXM 5.1.1
Definition Type: Group
Name: VisualGlideSlopeIndicatorPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

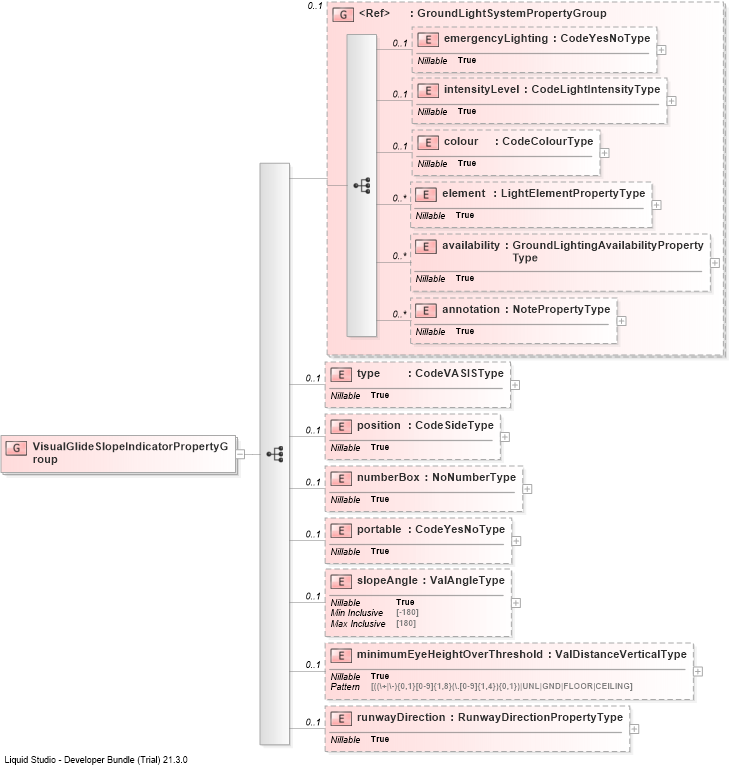

Collapse XSD Schema Diagram:
Drilldown into runwayDirectionDrilldown into minimumEyeHeightOverThresholdDrilldown into slopeAngleDrilldown into portableDrilldown into numberBoxDrilldown into positionDrilldown into typeDrilldown into annotationDrilldown into availabilityDrilldown into elementDrilldown into colourDrilldown into intensityLevelDrilldown into emergencyLightingDrilldown into GroundLightSystemPropertyGroupXSD Diagram of VisualGlideSlopeIndicatorPropertyGroup
Collapse XSD Schema Code:
<group name="VisualGlideSlopeIndicatorPropertyGroup">
    <sequence>
        <group ref="aixm:GroundLightSystemPropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeVASISType" nillable="true" minOccurs="0" />
        <element name="position" type="aixm:CodeSideType" nillable="true" minOccurs="0" />
        <element name="numberBox" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="portable" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="slopeAngle" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="minimumEyeHeightOverThreshold" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="runwayDirection" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
emergencyLighting aixm:emergencyLighting 0 (1)
intensityLevel aixm:intensityLevel 0 (1)
colour aixm:colour 0 (1)
element aixm:element 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
position aixm:position 0 (1)
numberBox aixm:numberBox 0 (1)
portable aixm:portable 0 (1)
slopeAngle aixm:slopeAngle 0 (1)
minimumEyeHeightOverThreshold aixm:minimumEyeHeightOverThreshold 0 (1)
runwayDirection aixm:runwayDirection 0 1
<xs:group> aixm:GroundLightSystemPropertyGroup 0 (1)
