Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AbstractAIXMFeatureBaseType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: gml:DynamicFeatureType
Containing Schema: AIXM_AbstractGML_ObjectTypes.xsd
Abstract True
Documentation:
This derives from gml:DynamicFeatureType, as all AIXM features are expected to have temporal properties modeled using the Timeslice model. While the GML specification does not mandate that dynamic features derive from gml:DynamicFeatureType, many GML-aware applications may only detect a dynamic feature by this type hierarchy. Note that all temporal properties of gml:DynamicFeatureType are removed during this restriction, because they will be added for each AIXM feature specifically, based on the TimeSlice model

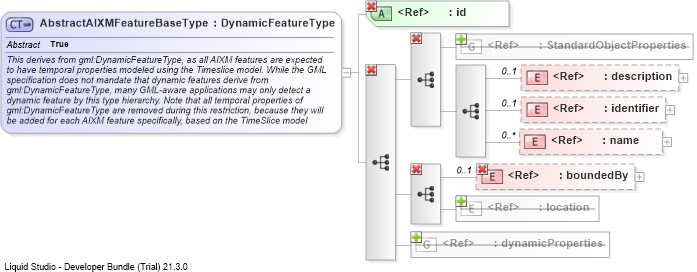

Collapse XSD Schema Diagram:
Drilldown into dynamicPropertiesDrilldown into locationDrilldown into boundedByDrilldown into nameDrilldown into identifierDrilldown into descriptionDrilldown into StandardObjectPropertiesDrilldown into idXSD Diagram of AbstractAIXMFeatureBaseType
Collapse XSD Schema Code:
<complexType name="AbstractAIXMFeatureBaseType" abstract="true">
    <annotation>
        <documentation>This derives from gml:DynamicFeatureType, as all AIXM features are expected to have temporal properties modeled using the Timeslice model. While the GML specification does not mandate that dynamic features derive from gml:DynamicFeatureType, many GML-aware applications may only detect a dynamic feature by this type hierarchy. Note that all temporal properties of gml:DynamicFeatureType are removed during this restriction, because they will be added for each AIXM feature specifically, based on the TimeSlice model</documentation>
    </annotation>
    <complexContent>
        <restriction base="gml:DynamicFeatureType">
            <sequence>
                <sequence>
                    <sequence>
                        <element ref="gml:description" minOccurs="0" />
                        <element ref="gml:identifier" minOccurs="0" />
                        <element ref="gml:name" minOccurs="0" maxOccurs="unbounded" />
                    </sequence>
                </sequence>
                <sequence>
                    <element ref="gml:boundedBy" minOccurs="0" />
                </sequence>
            </sequence>
            <attribute ref="gml:id" use="required" />
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
validTime gml:validTime 0 (1)
history gml:history 0 (1)
dataSource gml:dataSource 0 (1)
dataSourceReference gml:dataSourceReference 0 (1)
description gml:description 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:AbstractAIXMFeatureType, aixm:AbstractAIXMMessageBaseType
