Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AIXMBasicMessageType
Namespace: http://www.aixm.aero/schema/5.1.1/message
Type: aixm:AbstractAIXMMessageType
Containing Schema: AIXM_BasicMessage.xsd
Abstract

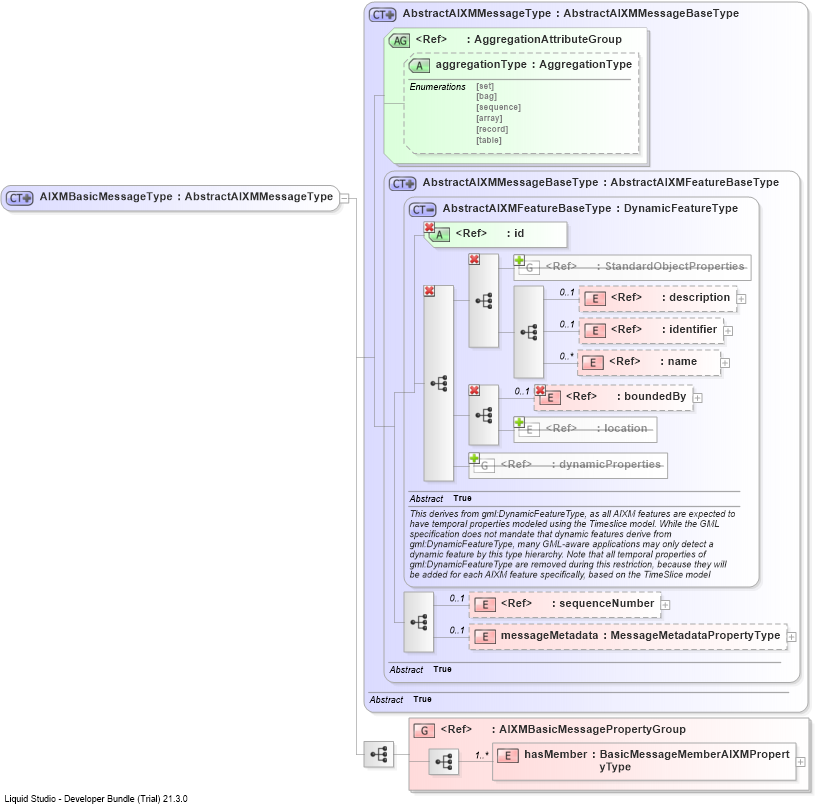

Collapse XSD Schema Diagram:
Drilldown into hasMemberDrilldown into AIXMBasicMessagePropertyGroupDrilldown into messageMetadataDrilldown into sequenceNumberDrilldown into dynamicPropertiesDrilldown into locationDrilldown into boundedByDrilldown into nameDrilldown into identifierDrilldown into descriptionDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMFeatureBaseTypeDrilldown into AbstractAIXMMessageBaseTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into AbstractAIXMMessageTypeXSD Diagram of AIXMBasicMessageType
Collapse XSD Schema Code:
<complexType name="AIXMBasicMessageType">
    <complexContent>
        <extension base="aixm:AbstractAIXMMessageType">
            <sequence>
                <group ref="message:AIXMBasicMessagePropertyGroup" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
validTime gml:validTime 0 (1)
history gml:history 0 (1)
dataSource gml:dataSource 0 (1)
dataSourceReference gml:dataSourceReference 0 (1)
description gml:description 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
sequenceNumber aixm:sequenceNumber 0 (1)
messageMetadata aixm:messageMetadata 0 (1)
hasMember message:hasMember (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> message:AIXMBasicMessagePropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
message:AIXMBasicMessage
