Documentation for AIXM 5.1.1
Definition Type: Element
Name: AbstractCoordinateOperation
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCoordinateOperationType
Containing Schema: coordinateOperations.xsd
Abstract True
Documentation:
gml:AbstractCoordinateOperation is a mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. Many but not all coordinate operations (from CRS A to CRS B) also uniquely define the inverse operation (from CRS B to CRS A). In some cases, the operation method algorithm for the inverse operation is the same as for the forward algorithm, but the signs of some operation parameter values shall be reversed. In other cases, different algorithms are required for the forward and inverse operations, but the same operation parameter values are used. If (some) entirely different parameter values are needed, a different coordinate operation shall be defined.
The optional coordinateOperationAccuracy property elements provide estimates of the impact of this coordinate operation on point position accuracy.

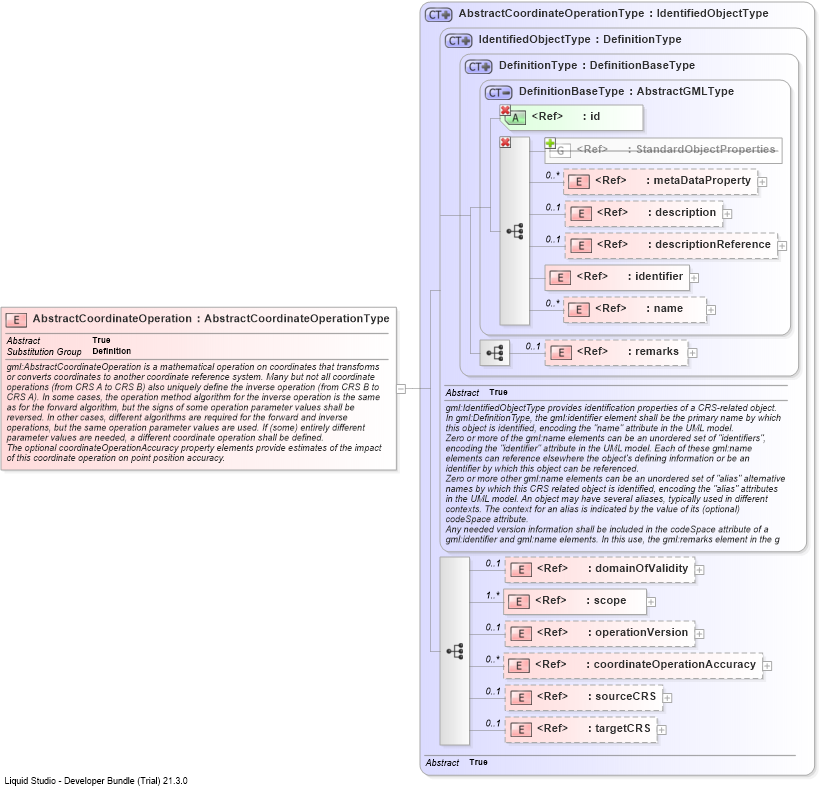

Collapse XSD Schema Diagram:
Drilldown into targetCRSDrilldown into sourceCRSDrilldown into coordinateOperationAccuracyDrilldown into operationVersionDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into AbstractCoordinateOperationTypeXSD Diagram of AbstractCoordinateOperation
Collapse XSD Schema Code:
<element name="AbstractCoordinateOperation" type="gml:AbstractCoordinateOperationType" abstract="true" substitutionGroup="gml:Definition">
    <annotation>
        <documentation>gml:AbstractCoordinateOperation is a mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. Many but not all coordinate operations (from CRS A to CRS B) also uniquely define the inverse operation (from CRS B to CRS A). In some cases, the operation method algorithm for the inverse operation is the same as for the forward algorithm, but the signs of some operation parameter values shall be reversed. In other cases, different algorithms are required for the forward and inverse operations, but the same operation parameter values are used. If (some) entirely different parameter values are needed, a different coordinate operation shall be defined.
The optional coordinateOperationAccuracy property elements provide estimates of the impact of this coordinate operation on point position accuracy.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion 0 (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:Definition
