Documentation for AIXM 5.1.1
Definition Type: Element
Name: AbstractRing
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractRingType
Containing Schema: geometryBasic2d.xsd
Abstract True
Documentation:
An abstraction of a ring to support surface boundaries of different complexity.
The AbstractRing element is the abstract head of the substituition group for all closed boundaries of a surface patch.

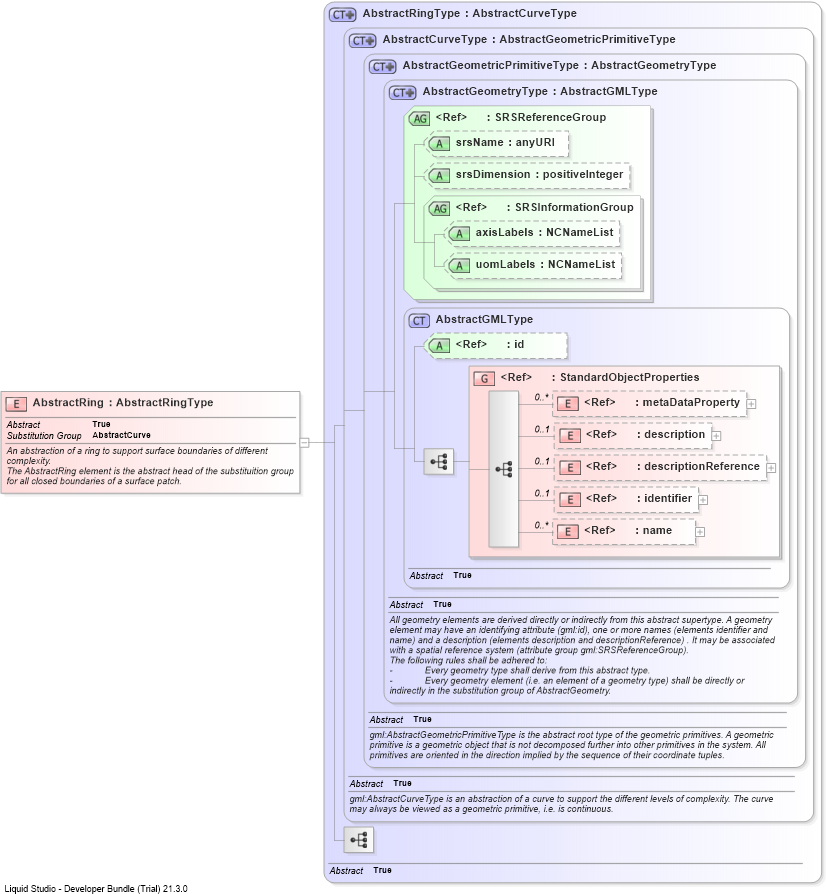

Collapse XSD Schema Diagram:
Drilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into AbstractRingTypeXSD Diagram of AbstractRing
Collapse XSD Schema Code:
<element name="AbstractRing" type="gml:AbstractRingType" abstract="true" substitutionGroup="gml:AbstractCurve">
    <annotation>
        <documentation>An abstraction of a ring to support surface boundaries of different complexity.
The AbstractRing element is the abstract head of the substituition group for all closed boundaries of a surface patch.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurve
