Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AbstractTimeGeometricPrimitiveType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractTimePrimitiveType
Containing Schema: temporal.xsd
Abstract True

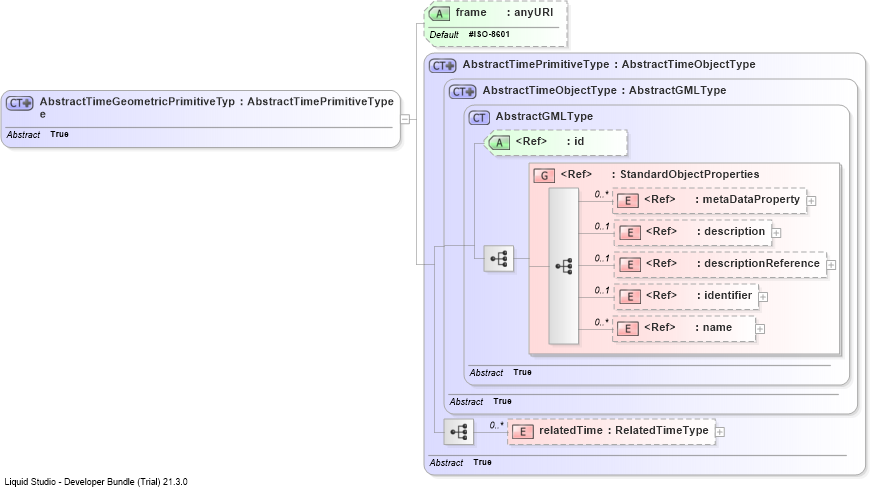

Collapse XSD Schema Diagram:
Drilldown into relatedTimeDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTimeObjectTypeDrilldown into AbstractTimePrimitiveTypeDrilldown into frameXSD Diagram of AbstractTimeGeometricPrimitiveType
Collapse XSD Schema Code:
<complexType name="AbstractTimeGeometricPrimitiveType" abstract="true">
    <complexContent>
        <extension base="gml:AbstractTimePrimitiveType">
            <attribute name="frame" type="anyURI" default="#ISO-8601" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
relatedTime gml:relatedTime 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
frame gml:frame #ISO-8601 (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimeGeometricPrimitivegml:TimeInstantType, gml:TimePeriodType,
