Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AerialRefuellingAnchorType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

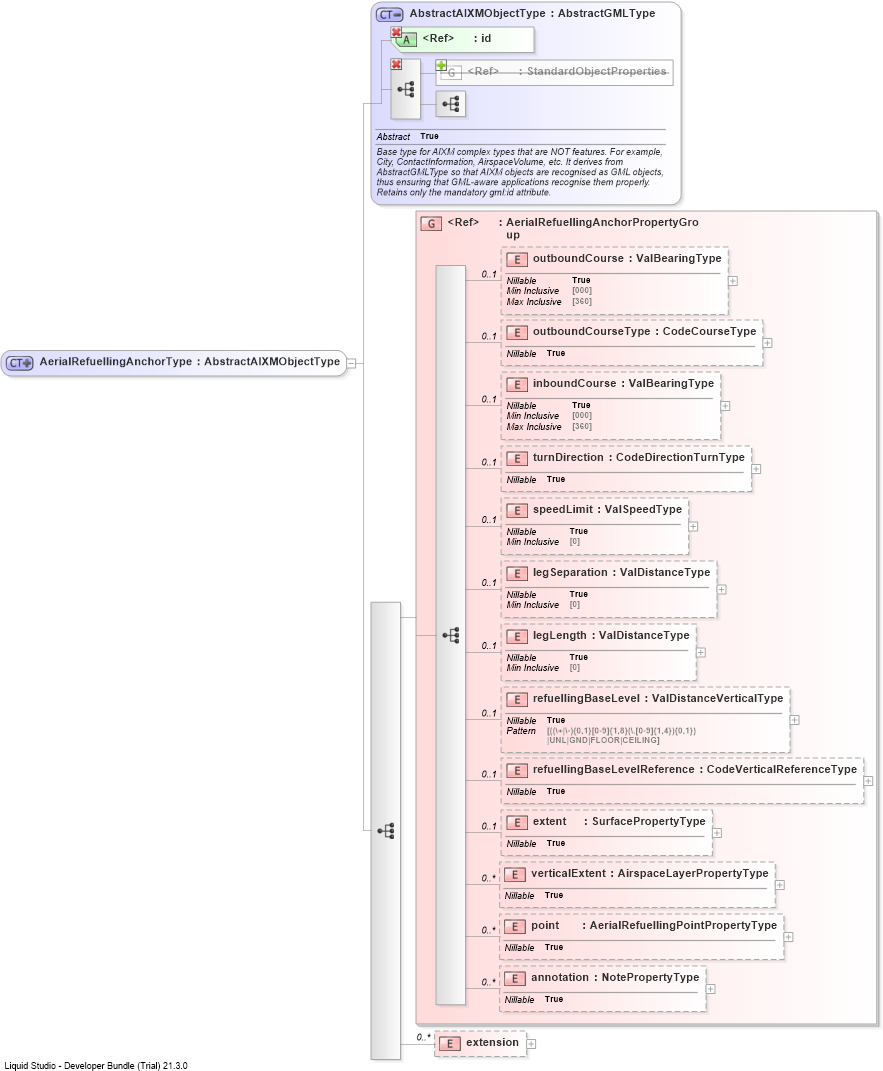

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into pointDrilldown into verticalExtentDrilldown into extentDrilldown into refuellingBaseLevelReferenceDrilldown into refuellingBaseLevelDrilldown into legLengthDrilldown into legSeparationDrilldown into speedLimitDrilldown into turnDirectionDrilldown into inboundCourseDrilldown into outboundCourseTypeDrilldown into outboundCourseDrilldown into AerialRefuellingAnchorPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of AerialRefuellingAnchorType
Collapse XSD Schema Code:
<complexType name="AerialRefuellingAnchorType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:AerialRefuellingAnchorPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractAerialRefuellingAnchorExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
outboundCourse aixm:outboundCourse 0 (1)
outboundCourseType aixm:outboundCourseType 0 (1)
inboundCourse aixm:inboundCourse 0 (1)
turnDirection aixm:turnDirection 0 (1)
speedLimit aixm:speedLimit 0 (1)
legSeparation aixm:legSeparation 0 (1)
legLength aixm:legLength 0 (1)
refuellingBaseLevel aixm:refuellingBaseLevel 0 (1)
refuellingBaseLevelReference aixm:refuellingBaseLevelReference 0 (1)
extent aixm:extent 0 1
verticalExtent aixm:verticalExtent 0 unbounded
point aixm:point 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:AerialRefuellingAnchorPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:AerialRefuellingAnchor
