Definition Type: Group
Name: AerialRefuellingTrackPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

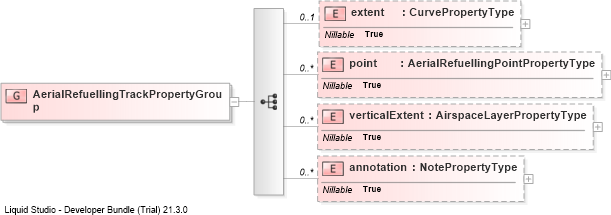

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into verticalExtentDrilldown into pointDrilldown into extentXSD Diagram of AerialRefuellingTrackPropertyGroup
Collapse XSD Schema Code:
<group name="AerialRefuellingTrackPropertyGroup">
    <sequence>
        <element name="extent" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="point" type="aixm:AerialRefuellingPointPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="verticalExtent" type="aixm:AirspaceLayerPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extent aixm:extent 0 1
point aixm:point 0 unbounded
verticalExtent aixm:verticalExtent 0 unbounded
annotation aixm:annotation 0 unbounded
