Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AirportHeliportContaminationType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractSurfaceContaminationType
Containing Schema: AIXM_Features.xsd
Abstract

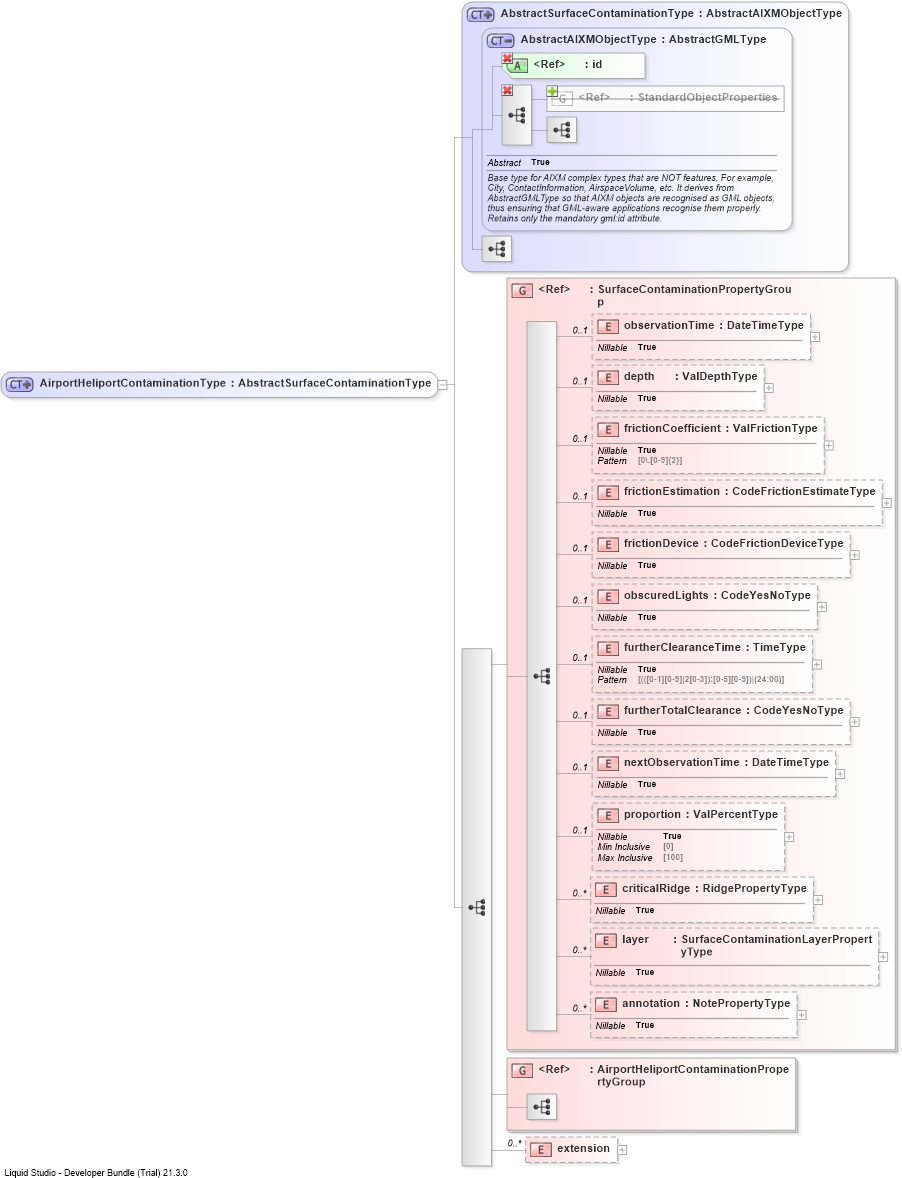

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into AirportHeliportContaminationPropertyGroupDrilldown into annotationDrilldown into layerDrilldown into criticalRidgeDrilldown into proportionDrilldown into nextObservationTimeDrilldown into furtherTotalClearanceDrilldown into furtherClearanceTimeDrilldown into obscuredLightsDrilldown into frictionDeviceDrilldown into frictionEstimationDrilldown into frictionCoefficientDrilldown into depthDrilldown into observationTimeDrilldown into SurfaceContaminationPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into AbstractSurfaceContaminationTypeXSD Diagram of AirportHeliportContaminationType
Collapse XSD Schema Code:
<complexType name="AirportHeliportContaminationType">
    <complexContent>
        <extension base="aixm:AbstractSurfaceContaminationType">
            <sequence>
                <group ref="aixm:SurfaceContaminationPropertyGroup" />
                <group ref="aixm:AirportHeliportContaminationPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractSurfaceContaminationExtension" />
                            <element ref="aixm:AbstractAirportHeliportContaminationExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
observationTime aixm:observationTime 0 (1)
depth aixm:depth 0 (1)
frictionCoefficient aixm:frictionCoefficient 0 (1)
frictionEstimation aixm:frictionEstimation 0 (1)
frictionDevice aixm:frictionDevice 0 (1)
obscuredLights aixm:obscuredLights 0 (1)
furtherClearanceTime aixm:furtherClearanceTime 0 (1)
furtherTotalClearance aixm:furtherTotalClearance 0 (1)
nextObservationTime aixm:nextObservationTime 0 (1)
proportion aixm:proportion 0 (1)
criticalRidge aixm:criticalRidge 0 unbounded
layer aixm:layer 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:SurfaceContaminationPropertyGroup (1) (1)
<xs:group> aixm:AirportHeliportContaminationPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:AirportHeliportContamination
