Definition Type: Group
Name: AirspaceVolumePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

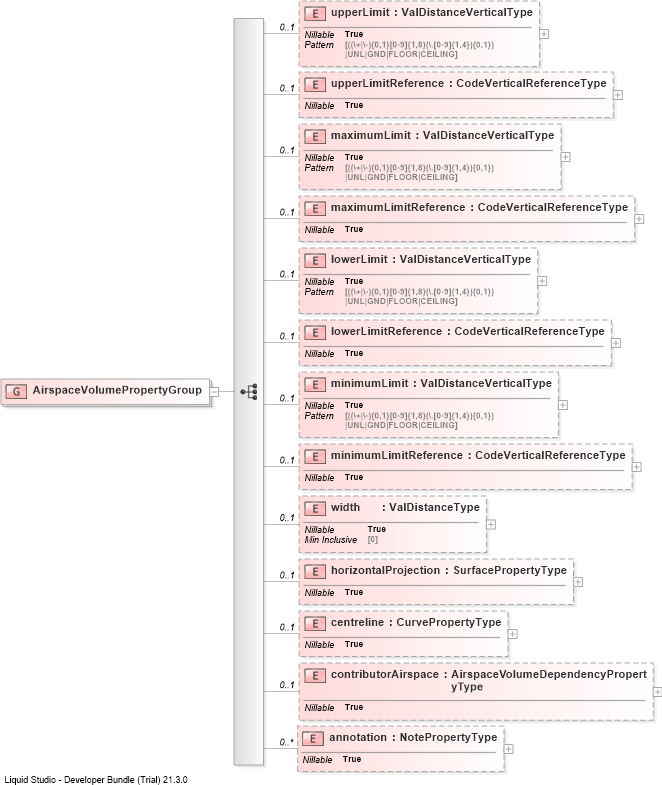

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into contributorAirspaceDrilldown into centrelineDrilldown into horizontalProjectionDrilldown into widthDrilldown into minimumLimitReferenceDrilldown into minimumLimitDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into maximumLimitReferenceDrilldown into maximumLimitDrilldown into upperLimitReferenceDrilldown into upperLimitXSD Diagram of AirspaceVolumePropertyGroup
Collapse XSD Schema Code:
<group name="AirspaceVolumePropertyGroup">
    <sequence>
        <element name="upperLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="upperLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="maximumLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="maximumLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="lowerLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="lowerLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="minimumLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="minimumLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="horizontalProjection" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="centreline" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="contributorAirspace" type="aixm:AirspaceVolumeDependencyPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
maximumLimit aixm:maximumLimit 0 (1)
maximumLimitReference aixm:maximumLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
minimumLimit aixm:minimumLimit 0 (1)
minimumLimitReference aixm:minimumLimitReference 0 (1)
width aixm:width 0 (1)
horizontalProjection aixm:horizontalProjection 0 1
centreline aixm:centreline 0 1
contributorAirspace aixm:contributorAirspace 0 1
annotation aixm:annotation 0 unbounded
