Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirTrafficControlServicePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

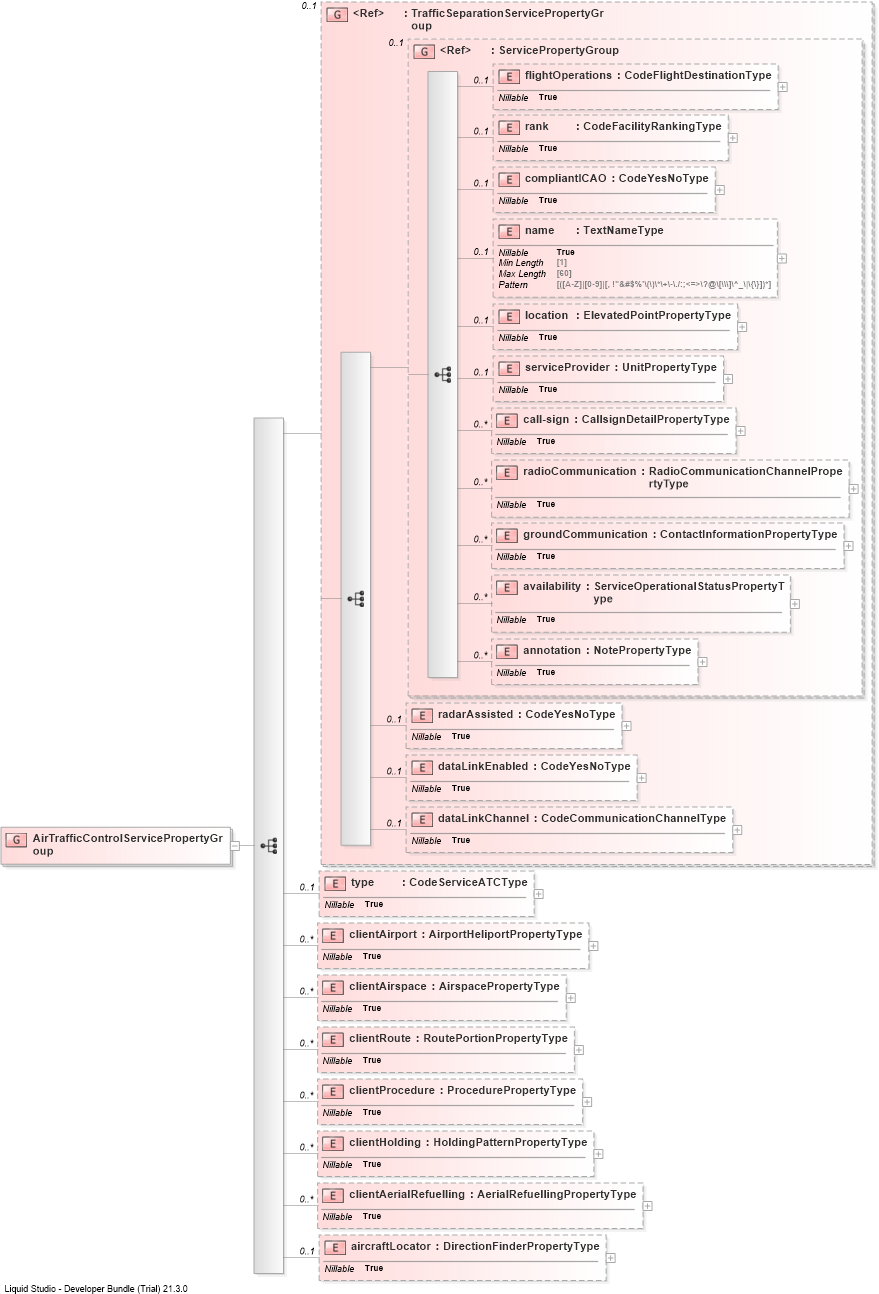

Collapse XSD Schema Diagram:
Drilldown into aircraftLocatorDrilldown into clientAerialRefuellingDrilldown into clientHoldingDrilldown into clientProcedureDrilldown into clientRouteDrilldown into clientAirspaceDrilldown into clientAirportDrilldown into typeDrilldown into dataLinkChannelDrilldown into dataLinkEnabledDrilldown into radarAssistedDrilldown into annotationDrilldown into availabilityDrilldown into groundCommunicationDrilldown into radioCommunicationDrilldown into call-signDrilldown into serviceProviderDrilldown into locationDrilldown into nameDrilldown into compliantICAODrilldown into rankDrilldown into flightOperationsDrilldown into ServicePropertyGroupDrilldown into TrafficSeparationServicePropertyGroupXSD Diagram of AirTrafficControlServicePropertyGroup
Collapse XSD Schema Code:
<group name="AirTrafficControlServicePropertyGroup">
    <sequence>
        <group ref="aixm:TrafficSeparationServicePropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeServiceATCType" nillable="true" minOccurs="0" />
        <element name="clientAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientRoute" type="aixm:RoutePortionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientProcedure" type="aixm:ProcedurePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientHolding" type="aixm:HoldingPatternPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientAerialRefuelling" type="aixm:AerialRefuellingPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="aircraftLocator" type="aixm:DirectionFinderPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flightOperations aixm:flightOperations 0 (1)
rank aixm:rank 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
serviceProvider aixm:serviceProvider 0 1
call-sign aixm:call-sign 0 unbounded
radioCommunication aixm:radioCommunication 0 unbounded
groundCommunication aixm:groundCommunication 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
radarAssisted aixm:radarAssisted 0 (1)
dataLinkEnabled aixm:dataLinkEnabled 0 (1)
dataLinkChannel aixm:dataLinkChannel 0 (1)
type aixm:type 0 (1)
clientAirport aixm:clientAirport 0 unbounded
clientAirspace aixm:clientAirspace 0 unbounded
clientRoute aixm:clientRoute 0 unbounded
clientProcedure aixm:clientProcedure 0 unbounded
clientHolding aixm:clientHolding 0 unbounded
clientAerialRefuelling aixm:clientAerialRefuelling 0 unbounded
aircraftLocator aixm:aircraftLocator 0 1
<xs:group> aixm:TrafficSeparationServicePropertyGroup 0 (1)
<xs:group> aixm:ServicePropertyGroup 0 (1)
