Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirTrafficManagementServicePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

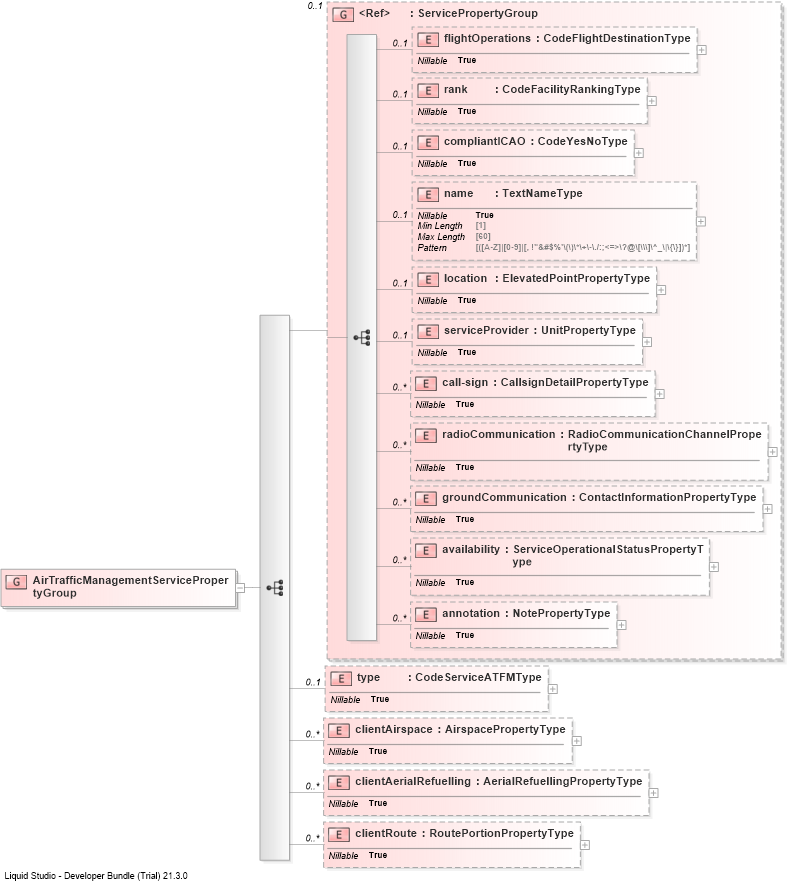

Collapse XSD Schema Diagram:
Drilldown into clientRouteDrilldown into clientAerialRefuellingDrilldown into clientAirspaceDrilldown into typeDrilldown into annotationDrilldown into availabilityDrilldown into groundCommunicationDrilldown into radioCommunicationDrilldown into call-signDrilldown into serviceProviderDrilldown into locationDrilldown into nameDrilldown into compliantICAODrilldown into rankDrilldown into flightOperationsDrilldown into ServicePropertyGroupXSD Diagram of AirTrafficManagementServicePropertyGroup
Collapse XSD Schema Code:
<group name="AirTrafficManagementServicePropertyGroup">
    <sequence>
        <group ref="aixm:ServicePropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeServiceATFMType" nillable="true" minOccurs="0" />
        <element name="clientAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientAerialRefuelling" type="aixm:AerialRefuellingPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientRoute" type="aixm:RoutePortionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flightOperations aixm:flightOperations 0 (1)
rank aixm:rank 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
serviceProvider aixm:serviceProvider 0 1
call-sign aixm:call-sign 0 unbounded
radioCommunication aixm:radioCommunication 0 unbounded
groundCommunication aixm:groundCommunication 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
clientAirspace aixm:clientAirspace 0 unbounded
clientAerialRefuelling aixm:clientAerialRefuelling 0 unbounded
clientRoute aixm:clientRoute 0 unbounded
<xs:group> aixm:ServicePropertyGroup 0 (1)
