Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: ApproachConditionType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

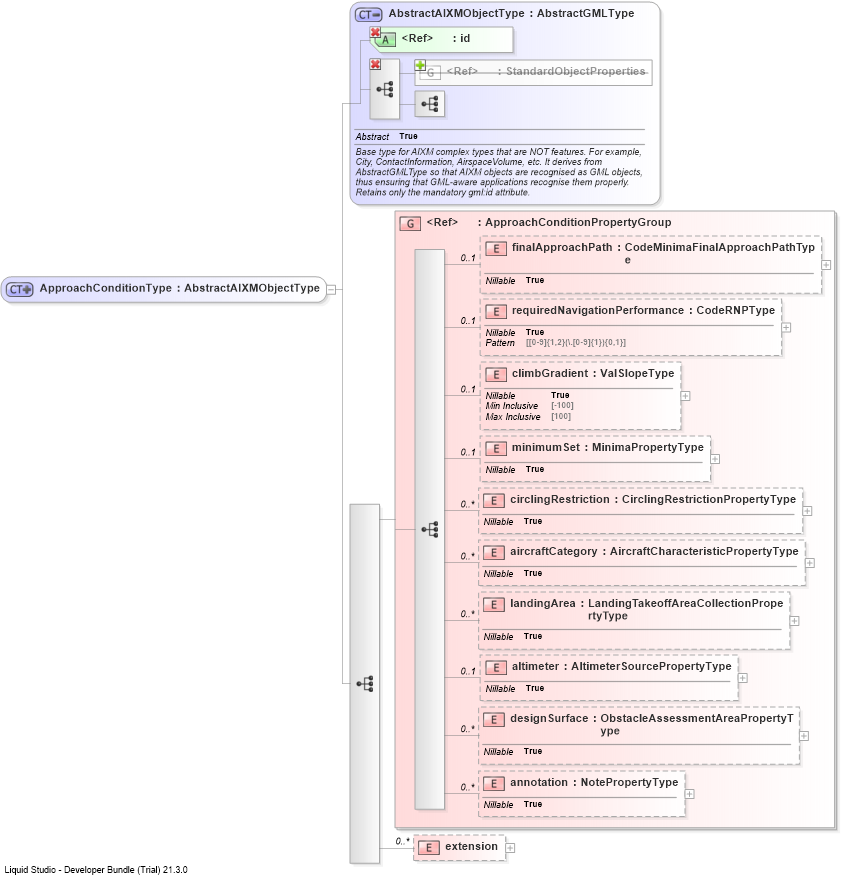

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into designSurfaceDrilldown into altimeterDrilldown into landingAreaDrilldown into aircraftCategoryDrilldown into circlingRestrictionDrilldown into minimumSetDrilldown into climbGradientDrilldown into requiredNavigationPerformanceDrilldown into finalApproachPathDrilldown into ApproachConditionPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of ApproachConditionType
Collapse XSD Schema Code:
<complexType name="ApproachConditionType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:ApproachConditionPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractApproachConditionExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
finalApproachPath aixm:finalApproachPath 0 (1)
requiredNavigationPerformance aixm:requiredNavigationPerformance 0 (1)
climbGradient aixm:climbGradient 0 (1)
minimumSet aixm:minimumSet 0 1
circlingRestriction aixm:circlingRestriction 0 unbounded
aircraftCategory aixm:aircraftCategory 0 unbounded
landingArea aixm:landingArea 0 unbounded
altimeter aixm:altimeter 0 1
designSurface aixm:designSurface 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:ApproachConditionPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:ApproachCondition
