Definition Type: Element
Name: ArcByBulge
Namespace: http://www.opengis.net/gml/3.2
Type: gml:ArcByBulgeType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
An ArcByBulge is an arc string with only one arc unit, i.e. two control points, one bulge and one normal vector.
As arc is an arc string consisting of a single arc, the attribute "numArc" is fixed to "1".
Collapse XSD Schema Diagram:

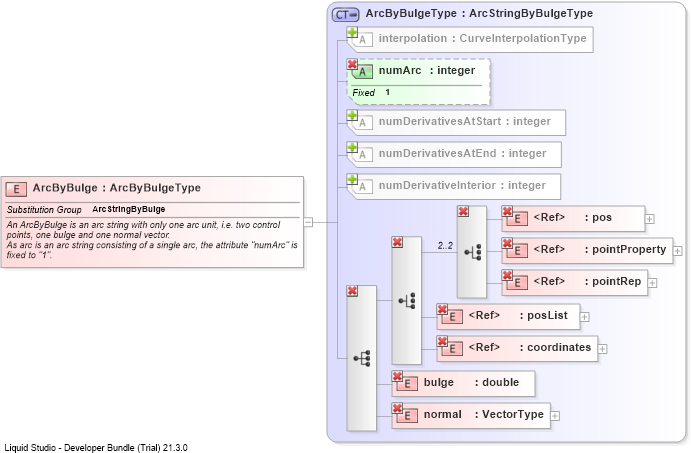

Drilldown into normalDrilldown into bulgeDrilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into numArcDrilldown into interpolationDrilldown into ArcByBulgeTypeXSD Diagram of ArcByBulge
Collapse XSD Schema Code:
<element name="ArcByBulge" type="gml:ArcByBulgeType" substitutionGroup="gml:ArcStringByBulge">
    <annotation>
        <documentation>An ArcByBulge is an arc string with only one arc unit, i.e. two control points, one bulge and one normal vector.
As arc is an arc string consisting of a single arc, the attribute "numArc" is fixed to "1".</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
bulge gml:bulge (1) unbounded
normal gml:normal (1) unbounded
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
bulge gml:bulge (1) (1)
normal gml:normal (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc (Optional)
