Definition Type: ComplexType
Name: ArcStringByBulgeType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCurveSegmentType
Containing Schema: geometryPrimitives.xsd
Abstract
Collapse XSD Schema Diagram:

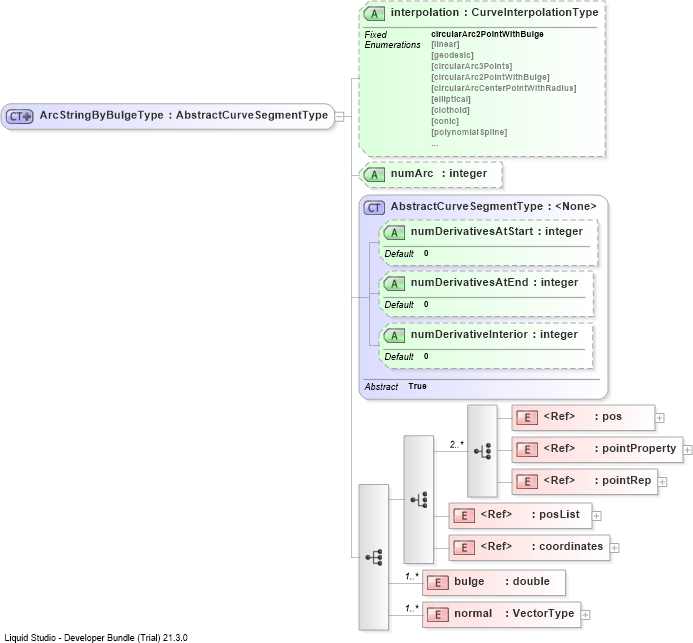

Drilldown into normalDrilldown into bulgeDrilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into AbstractCurveSegmentTypeDrilldown into numArcDrilldown into interpolationXSD Diagram of ArcStringByBulgeType
Collapse XSD Schema Code:
<complexType name="ArcStringByBulgeType">
    <complexContent>
        <extension base="gml:AbstractCurveSegmentType">
            <sequence>
                <choice>
                    <choice minOccurs="2" maxOccurs="unbounded">
                        <element ref="gml:pos" />
                        <element ref="gml:pointProperty" />
                        <element ref="gml:pointRep" />
                    </choice>
                    <element ref="gml:posList" />
                    <element ref="gml:coordinates" />
                </choice>
                <element name="bulge" type="double" maxOccurs="unbounded" />
                <element name="normal" type="gml:VectorType" maxOccurs="unbounded" />
            </sequence>
            <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArc2PointWithBulge" />
            <attribute name="numArc" type="integer" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
bulge gml:bulge (1) unbounded
normal gml:normal (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc (Optional)
Collapse Derivation Tree:
Collapse References:
gml:ArcByBulgeType, gml:ArcStringByBulge
