Documentation for AIXM 5.1.1
Definition Type: Element
Name: baseCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CurvePropertyType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
The property baseCurve references or contains the base curve, i.e. it either references the base curve via the XLink-attributes or contains the curve element. A curve element is any element which is substitutable for AbstractCurve. The base curve has positive orientation.

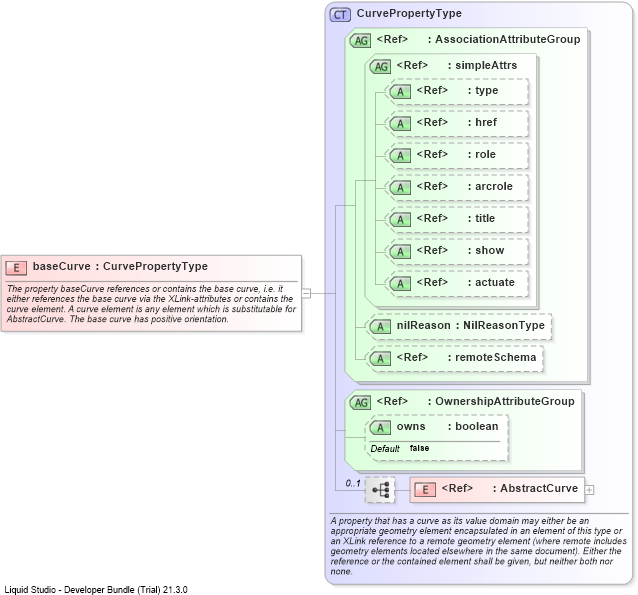

Collapse XSD Schema Diagram:
Drilldown into AbstractCurveDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into CurvePropertyTypeXSD Diagram of baseCurve
Collapse XSD Schema Code:
<element name="baseCurve" type="gml:CurvePropertyType">
    <annotation>
        <documentation>The property baseCurve references or contains the base curve, i.e. it either references the base curve via the XLink-attributes or contains the curve element. A curve element is any element which is substitutable for AbstractCurve. The base curve has positive orientation.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractCurve gml:AbstractCurve (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
