Documentation for AIXM 5.1.1
Definition Type: Group
Name: CheckpointINSPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

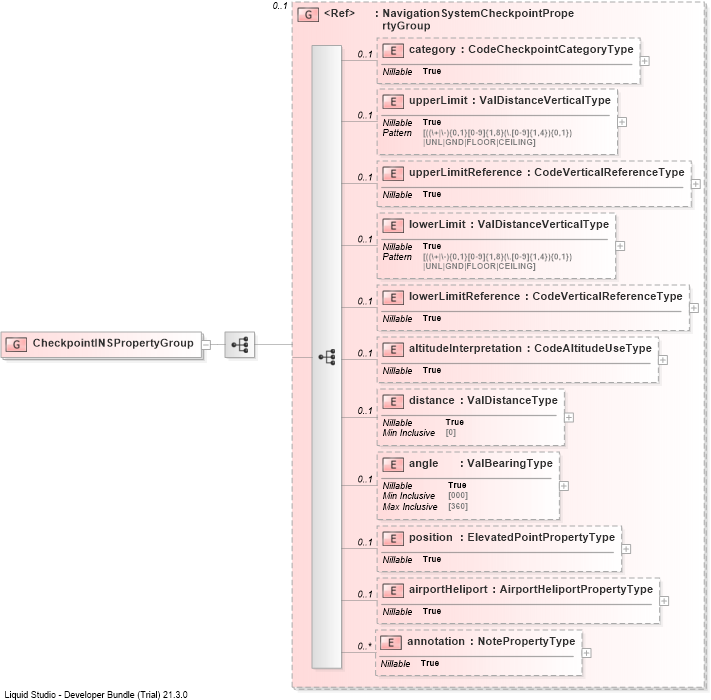

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into airportHeliportDrilldown into positionDrilldown into angleDrilldown into distanceDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into categoryDrilldown into NavigationSystemCheckpointPropertyGroupXSD Diagram of CheckpointINSPropertyGroup
Collapse XSD Schema Code:
<group name="CheckpointINSPropertyGroup">
    <sequence>
        <group ref="aixm:NavigationSystemCheckpointPropertyGroup" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
category aixm:category 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
distance aixm:distance 0 (1)
angle aixm:angle 0 (1)
position aixm:position 0 1
airportHeliport aixm:airportHeliport 0 1
annotation aixm:annotation 0 unbounded
<xs:group> aixm:NavigationSystemCheckpointPropertyGroup 0 (1)
