Definition Type: Group
Name: CheckpointVORPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

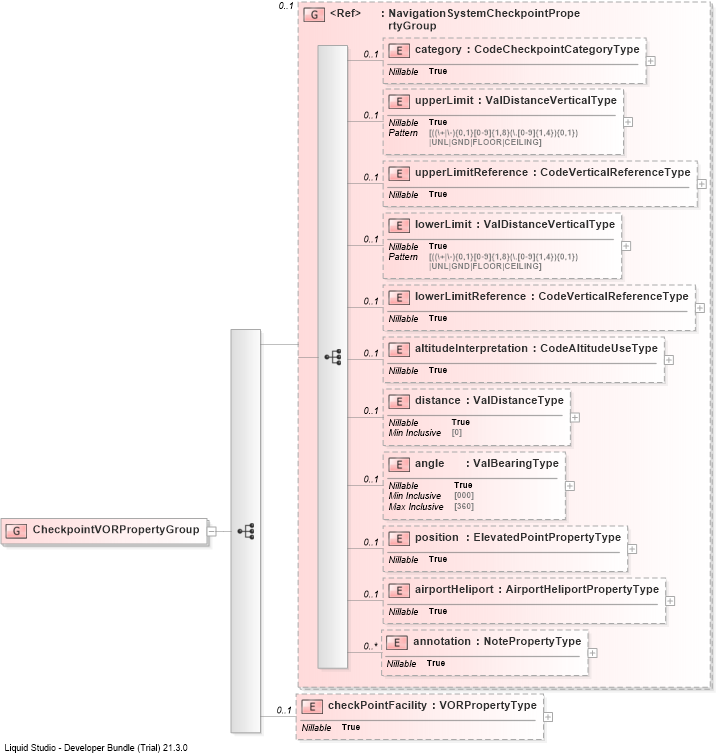

Collapse XSD Schema Diagram:
Drilldown into checkPointFacilityDrilldown into annotationDrilldown into airportHeliportDrilldown into positionDrilldown into angleDrilldown into distanceDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into categoryDrilldown into NavigationSystemCheckpointPropertyGroupXSD Diagram of CheckpointVORPropertyGroup
Collapse XSD Schema Code:
<group name="CheckpointVORPropertyGroup">
    <sequence>
        <group ref="aixm:NavigationSystemCheckpointPropertyGroup" minOccurs="0" />
        <element name="checkPointFacility" type="aixm:VORPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
category aixm:category 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
distance aixm:distance 0 (1)
angle aixm:angle 0 (1)
position aixm:position 0 1
airportHeliport aixm:airportHeliport 0 1
annotation aixm:annotation 0 unbounded
checkPointFacility aixm:checkPointFacility 0 1
<xs:group> aixm:NavigationSystemCheckpointPropertyGroup 0 (1)
