Documentation for AIXM 5.1.1
Definition Type: Element
Name: CircleSector
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:CircleSectorType
Containing Schema: AIXM_Features.xsd
Abstract

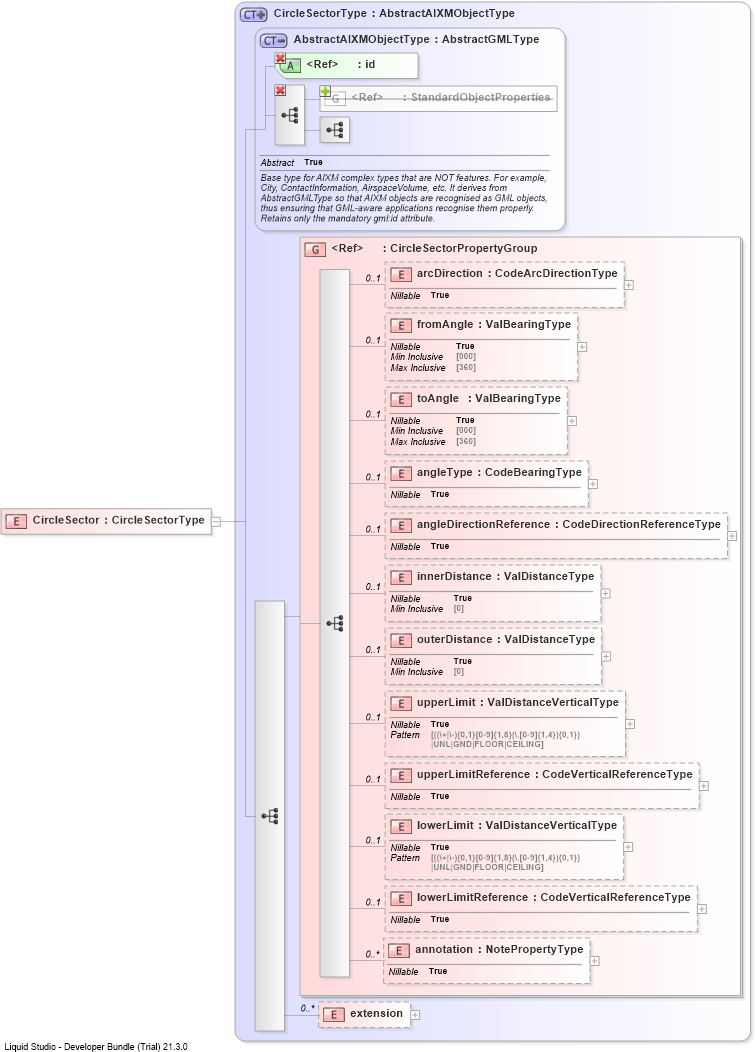

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into outerDistanceDrilldown into innerDistanceDrilldown into angleDirectionReferenceDrilldown into angleTypeDrilldown into toAngleDrilldown into fromAngleDrilldown into arcDirectionDrilldown into CircleSectorPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into CircleSectorTypeXSD Diagram of CircleSector
Collapse XSD Schema Code:
<element name="CircleSector" type="aixm:CircleSectorType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
arcDirection aixm:arcDirection 0 (1)
fromAngle aixm:fromAngle 0 (1)
toAngle aixm:toAngle 0 (1)
angleType aixm:angleType 0 (1)
angleDirectionReference aixm:angleDirectionReference 0 (1)
innerDistance aixm:innerDistance 0 (1)
outerDistance aixm:outerDistance 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:CircleSectorPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
