Definition Type: Element
Name: CompositeCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CompositeCurveType
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
A gml:CompositeCurve is represented by a sequence of (orientable) curves such that each curve in the sequence terminates at the start point of the subsequent curve in the list.
curveMember references or contains inline one curve in the composite curve.
The curves are contiguous, the collection of curves is ordered. Therefore, if provided, the aggregationType attribute shall have the value "sequence".

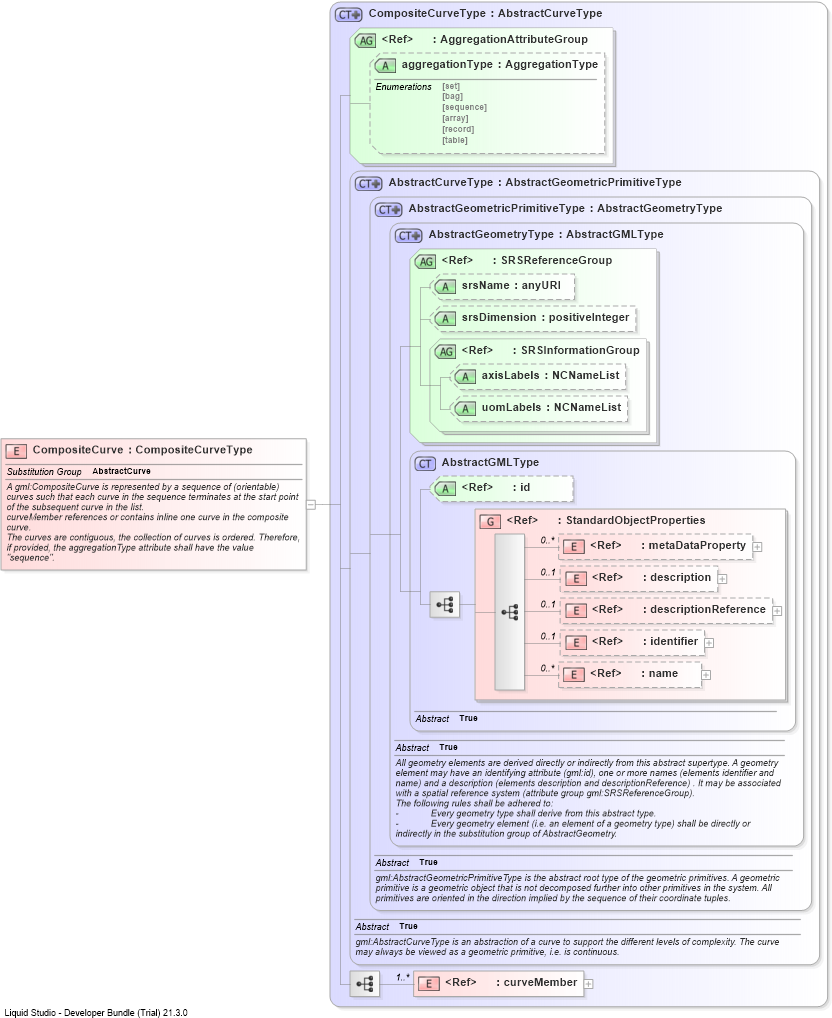

Collapse XSD Schema Diagram:
Drilldown into curveMemberDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into CompositeCurveTypeXSD Diagram of CompositeCurve
Collapse XSD Schema Code:
<element name="CompositeCurve" type="gml:CompositeCurveType" substitutionGroup="gml:AbstractCurve">
    <annotation>
        <documentation>A gml:CompositeCurve is represented by a sequence of (orientable) curves such that each curve in the sequence terminates at the start point of the subsequent curve in the list.
curveMember references or contains inline one curve in the composite curve.
The curves are contiguous, the collection of curves is ordered. Therefore, if provided, the aggregationType attribute shall have the value "sequence".</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
curveMember gml:curveMember (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurve
