Documentation for AIXM 5.1.1
Definition Type: Element
Name: CompoundCRS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CompoundCRSType
Containing Schema: coordinateReferenceSystems.xsd
Abstract
Documentation:
gml:CompundCRS is a coordinate reference system describing the position of points through two or more independent coordinate reference systems. It is associated with a non-repeating sequence of two or more instances of SingleCRS.

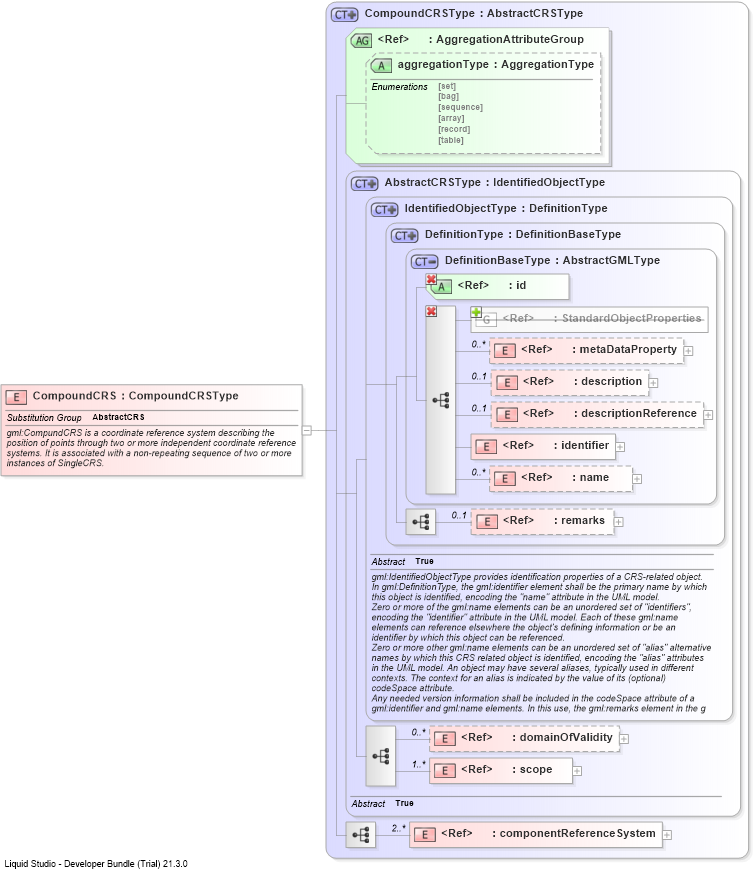

Collapse XSD Schema Diagram:
Drilldown into componentReferenceSystemDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into AbstractCRSTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into CompoundCRSTypeXSD Diagram of CompoundCRS
Collapse XSD Schema Code:
<element name="CompoundCRS" type="gml:CompoundCRSType" substitutionGroup="gml:AbstractCRS">
    <annotation>
        <documentation>gml:CompundCRS is a coordinate reference system describing the position of points through two or more independent coordinate reference systems. It is associated with a non-repeating sequence of two or more instances of SingleCRS.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 unbounded
scope gml:scope (1) unbounded
componentReferenceSystem gml:componentReferenceSystem 2 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCRS
