Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: CompoundCRSPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateReferenceSystems.xsd
Abstract
Documentation:
gml:CompoundCRSPropertyType is a property type for association roles to a compound coordinate reference system, either referencing or containing the definition of that reference system.

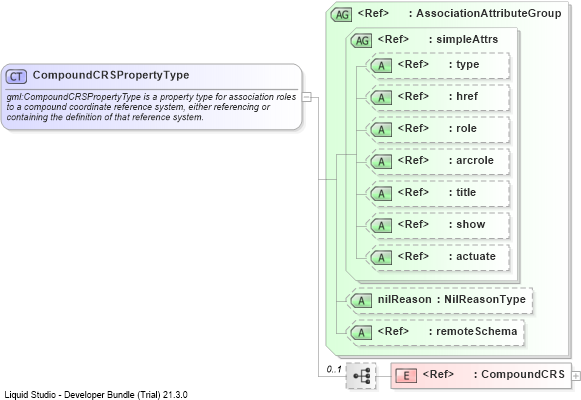

Collapse XSD Schema Diagram:
Drilldown into CompoundCRSDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of CompoundCRSPropertyType
Collapse XSD Schema Code:
<complexType name="CompoundCRSPropertyType">
    <annotation>
        <documentation>gml:CompoundCRSPropertyType is a property type for association roles to a compound coordinate reference system, either referencing or containing the definition of that reference system.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:CompoundCRS" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompoundCRS gml:CompoundCRS (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:compoundCRSRef
