Documentation for AIXM 5.1.1
Definition Type: Element
Name: curveProperty
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CurvePropertyType
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
This property element either references a curve via the XLink-attributes or contains the curve element. curveProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for AbstractCurve.

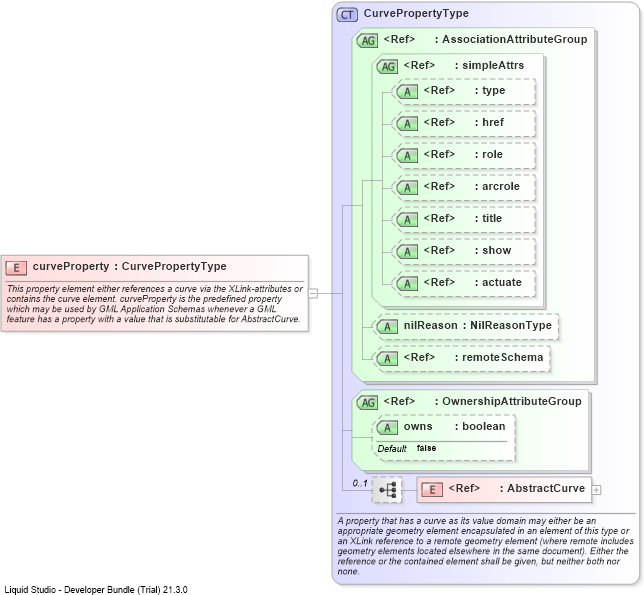

Collapse XSD Schema Diagram:
Drilldown into AbstractCurveDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into CurvePropertyTypeXSD Diagram of curveProperty
Collapse XSD Schema Code:
<element name="curveProperty" type="gml:CurvePropertyType">
    <annotation>
        <documentation>This property element either references a curve via the XLink-attributes or contains the curve element. curveProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for AbstractCurve.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractCurve gml:AbstractCurve (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
