Documentation for AIXM 5.1.1
Definition Type: Element
Name: DerivedCRS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DerivedCRSType
Containing Schema: coordinateReferenceSystems.xsd
Abstract
Documentation:
gml:DerivedCRS is a single coordinate reference system that is defined by its coordinate conversion from another single coordinate reference system known as the base CRS. The base CRS can be a projected coordinate reference system, if this DerivedCRS is used for a georectified grid coverage as described in ISO 19123, Clause 8.

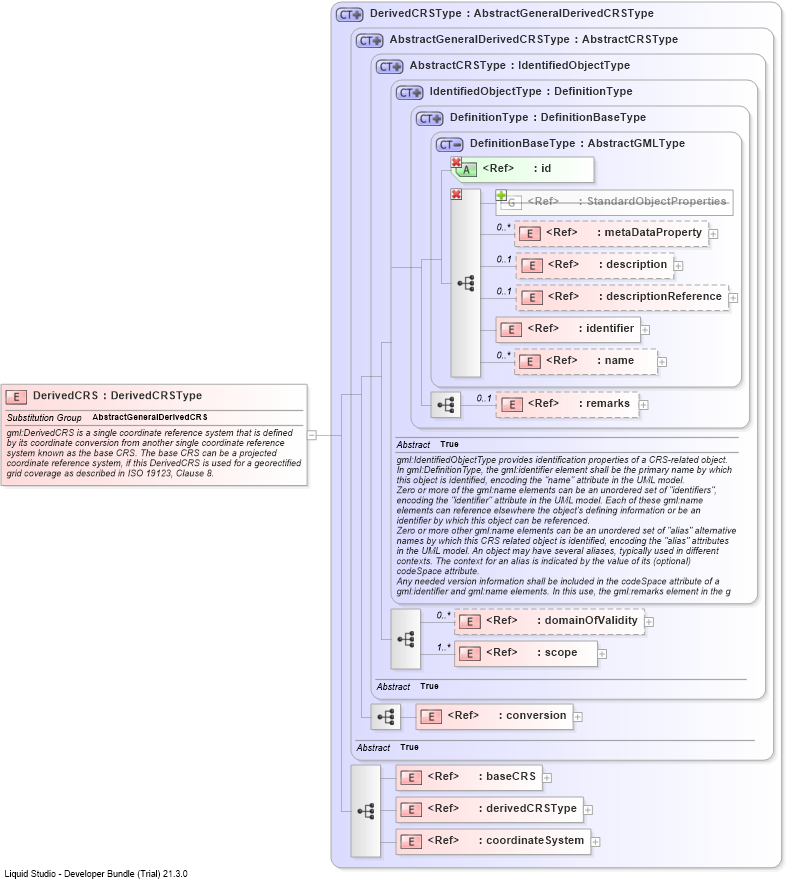

Collapse XSD Schema Diagram:
Drilldown into coordinateSystemDrilldown into derivedCRSTypeDrilldown into baseCRSDrilldown into conversionDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into AbstractCRSTypeDrilldown into AbstractGeneralDerivedCRSTypeDrilldown into DerivedCRSTypeXSD Diagram of DerivedCRS
Collapse XSD Schema Code:
<element name="DerivedCRS" type="gml:DerivedCRSType" substitutionGroup="gml:AbstractGeneralDerivedCRS">
    <annotation>
        <documentation>gml:DerivedCRS is a single coordinate reference system that is defined by its coordinate conversion from another single coordinate reference system known as the base CRS. The base CRS can be a projected coordinate reference system, if this DerivedCRS is used for a georectified grid coverage as described in ISO 19123, Clause 8.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 unbounded
scope gml:scope (1) unbounded
conversion gml:conversion (1) (1)
baseCRS gml:baseCRS (1) (1)
derivedCRSType gml:derivedCRSType (1) (1)
coordinateSystem gml:coordinateSystem (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeneralDerivedCRS
