Documentation for AIXM 5.1.1
Definition Type: Element
Name: directedEdge
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectedEdgePropertyType
Containing Schema: topology.xsd
Abstract
Documentation:
A gml:directedEdge property element describes the boundary of topology faces, the coBoundary of topology nodes and is used in the support of topological line features via the gml:TopoCurve expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included edge is used, i.e. forward or reverse.

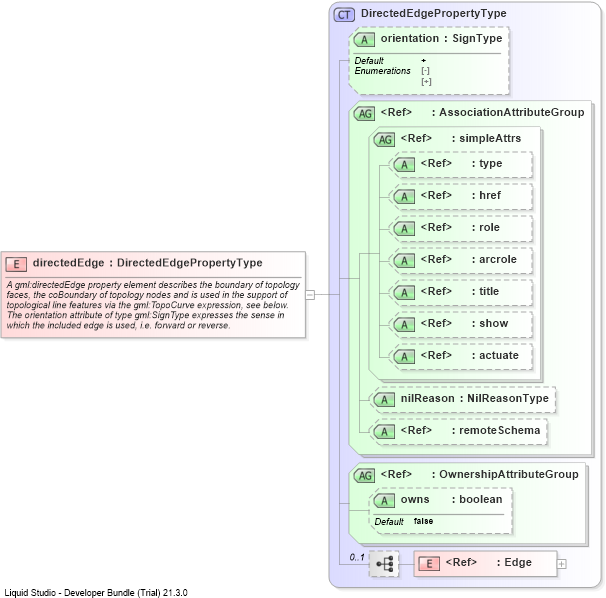

Collapse XSD Schema Diagram:
Drilldown into EdgeDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into orientationDrilldown into DirectedEdgePropertyTypeXSD Diagram of directedEdge
Collapse XSD Schema Code:
<element name="directedEdge" type="gml:DirectedEdgePropertyType">
    <annotation>
        <documentation>A gml:directedEdge property element describes the boundary of topology faces, the coBoundary of topology nodes and is used in the support of topological line features via the gml:TopoCurve expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included edge is used, i.e. forward or reverse.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Edge gml:Edge (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
orientation gml:orientation + (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
