Definition Type: Element
Name: Edge
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EdgeType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:Edge represents the 1-dimensional primitive.
The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node.
The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-".
If provided, the aggregationType attribute shall have the value "sequence".
An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).
Collapse XSD Schema Diagram:

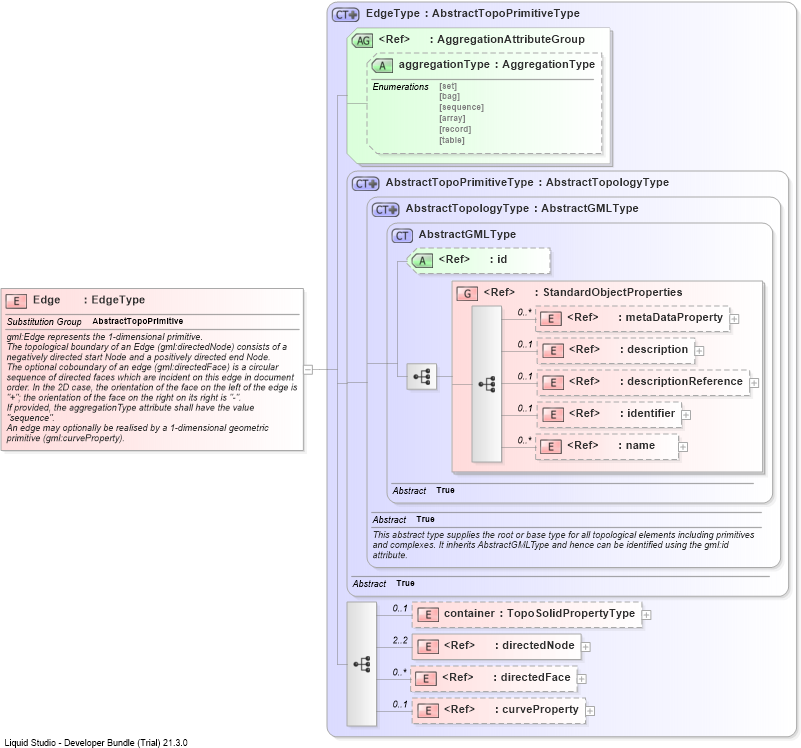

Drilldown into curvePropertyDrilldown into directedFaceDrilldown into directedNodeDrilldown into containerDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTopologyTypeDrilldown into AbstractTopoPrimitiveTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into EdgeTypeXSD Diagram of Edge
Collapse XSD Schema Code:
<element name="Edge" type="gml:EdgeType" substitutionGroup="gml:AbstractTopoPrimitive">
    <annotation>
        <documentation>gml:Edge represents the 1-dimensional primitive.
The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node.
The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-".
If provided, the aggregationType attribute shall have the value "sequence".
An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
container gml:container 0 (1)
directedNode gml:directedNode 2 2
directedFace gml:directedFace 0 unbounded
curveProperty gml:curveProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
