Definition Type:	ComplexType
Name:	EdgeType
Namespace:	http://www.opengis.net/gml/3.2
Type:	gml:AbstractTopoPrimitiveType
Containing Schema:	topology.xsd
Abstract

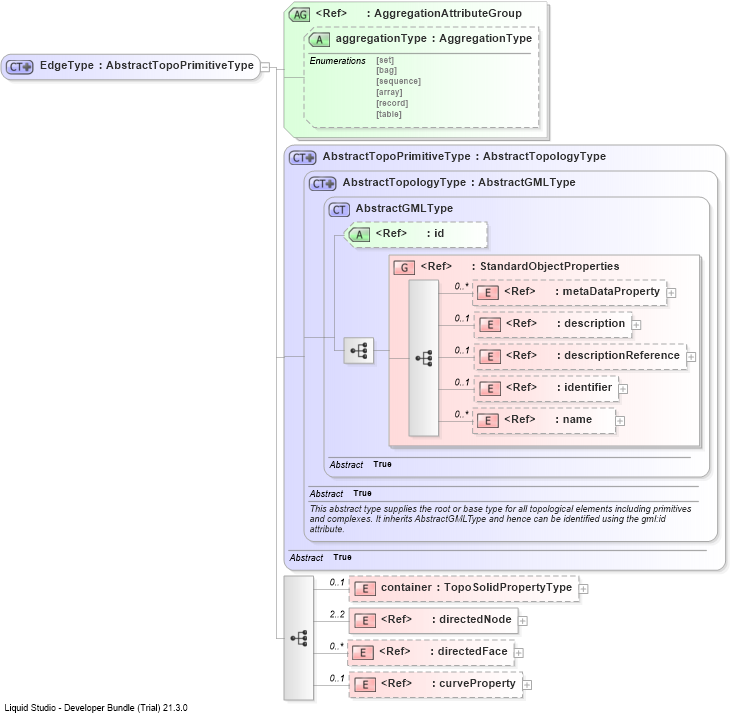

XSD Schema Diagram:

XSD Schema Code:

<complexType name="EdgeType">
    <complexContent>
        <extension base="gml:AbstractTopoPrimitiveType">
            <sequence>
                <element name="container" type="gml:TopoSolidPropertyType" minOccurs="0" />
                <element ref="gml:directedNode" minOccurs="2" maxOccurs="2" />
                <element ref="gml:directedFace" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:curveProperty" minOccurs="0" />
            </sequence>
            <attributeGroup ref="gml:AggregationAttributeGroup" />
        </extension>
    </complexContent>
</complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
metaDataProperty	gml:metaDataProperty	0	unbounded
description	gml:description	0	(1)
descriptionReference	gml:descriptionReference	0	(1)
identifier	gml:identifier	0	(1)
name	gml:name	0	unbounded
container	gml:container	0	(1)
directedNode	gml:directedNode	2	2
directedFace	gml:directedFace	0	unbounded
curveProperty	gml:curveProperty	0	(1)
<xs:group>	gml:StandardObjectProperties	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	gml:id		(Optional)
aggregationType	gml:aggregationType		(Optional)

Derivation Tree:
	gml:AbstractGMLType gml:AbstractTopologyType gml:AbstractTopoPrimitiveType *EdgeType* gml:Edge

References:
	gml:Edge
